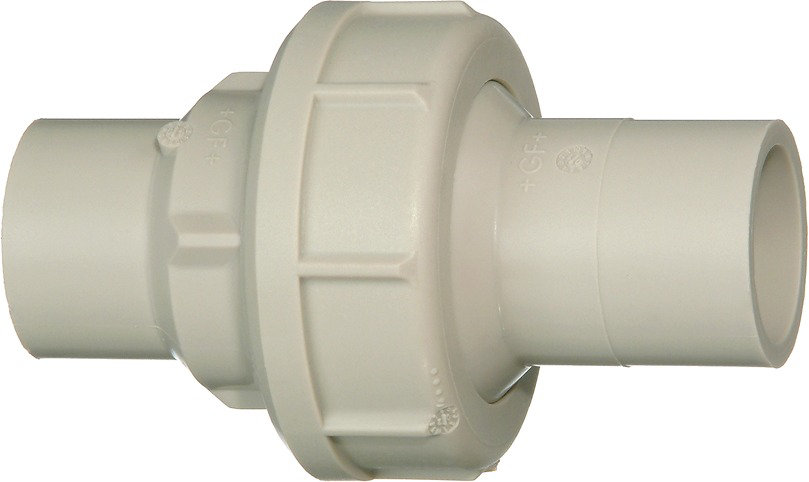

PP-H Standard Šroubení
Popis
SDR11/PN10
Model:
Materiál: PP-H
IR = kompatibilní pro infračervené svařování
Běžné svařování natupo dle DVS 2207
IR = kompatibilní pro infračervené svařování
Běžné svařování natupo dle DVS 2207
Poznámka
s natupo koncovkami
Těsnění: O-kroužek EPDM
Pro rozměry d75-110 viz pokyny k instalaci
d75-d110 nový design závitu od roku 2022
Těsnění: O-kroužek EPDM
Pro rozměry d75-110 viz pokyny k instalaci
d75-d110 nový design závitu od roku 2022
EPDM
|

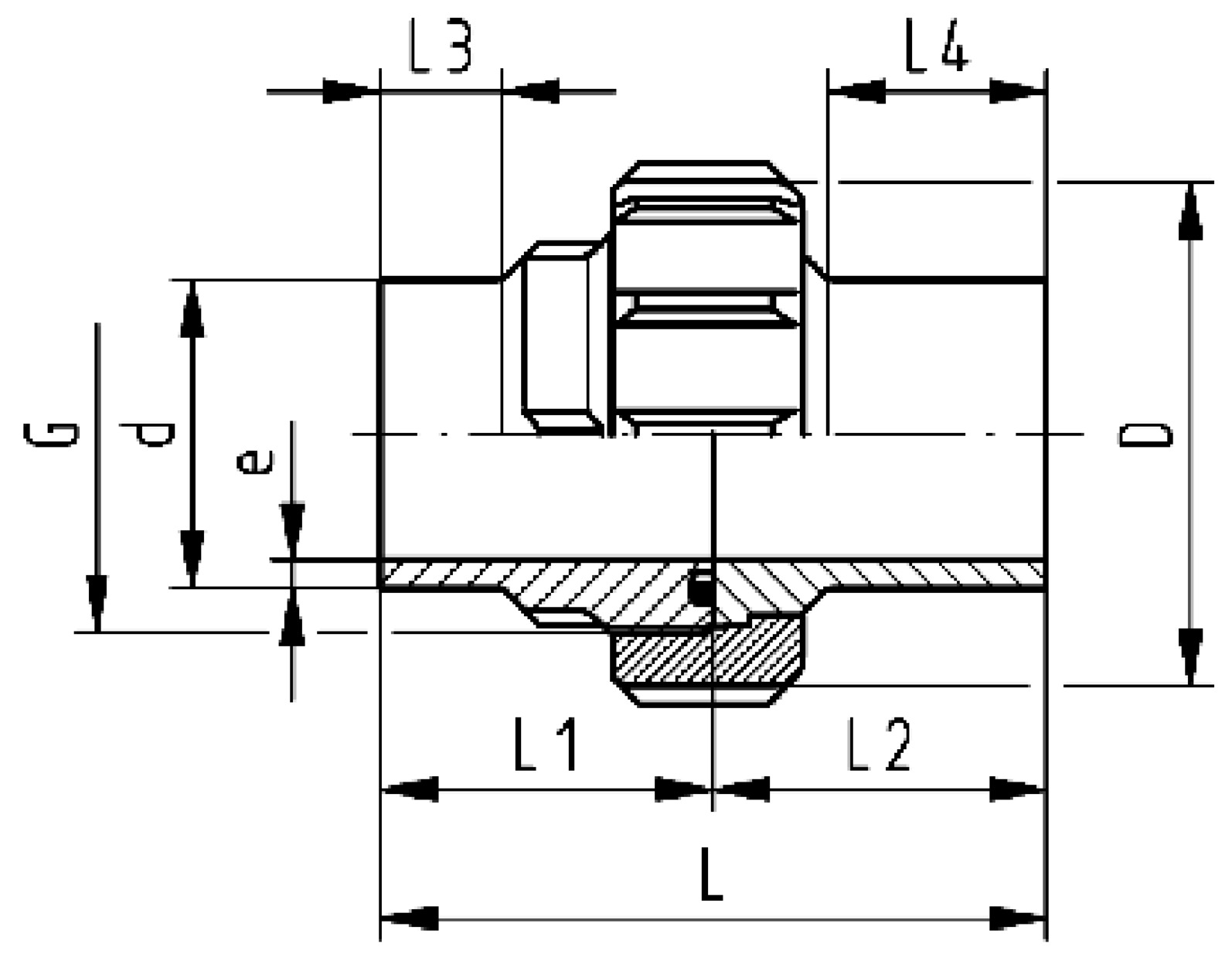

d (mm) |
SDR |
PN (bar) |
FM |
L (mm) |
L1 (mm) |
L2 (mm) |
L3 (mm) |
L4 (mm) |
D (mm) |
G (inch) |
e (mm) |
Dimenze |
O-kroužek EPDM |
O-kroužek FKM |
Váha kg |
Obj. kód |
Ceníková cena (Kč) | Skladem | Katalogový list | Přidat do košíku |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20
|
11
|
10
|
IR
|
107.0
|
54.0
|
53.0
|
26
|
37
|
48
|
1
|
1.9
|
20,22 x 3,53
|
748.410.006
|
749.410.006
|
0.046
|
727518506
|
479,00 | 5 ks + | ||
|
25
|
11
|
10
|
IR
|
113.0
|
57.0
|
56.0
|
26
|
36
|
58
|
1 1/4
|
2.3
|
28,17 x 3,53
|
748.410.007
|
749.410.007
|
0.072
|
727518507
|
596,00 | 5 ks + | ||
|
32
|
11
|
10
|
IR
|
119.0
|
60.0
|
59.0
|
26
|
25
|
65
|
1 1/2
|
2.9
|
32,93 x 3,53
|
748.410.008
|
749.410.008
|
0.1
|
727518508
|
612,00 | 5 ks + | ||
|
40
|
11
|
10
|
IR
|
126.0
|
63.0
|
63.0
|
26
|
25
|
79
|
2
|
3.7
|
40,65 x 5,34
|
748.410.009
|
749.410.009
|
0.139
|
727518509
|
868,00 | 5 ks + | ||
|
50
|
11
|
10
|
IR
|
131.0
|
65.5
|
65.5
|
26
|
25
|
91
|
2 1/4
|
4.6
|
46,99 x 5,34
|
748.410.010
|
749.410.010
|
0.186
|
727518510
|
1 081,00 | 5 ks + | ||
|
63
|
11
|
10
|
IR
|
137.0
|
69.0
|
68.0
|
26
|
26
|
111
|
2 3/4
|
5.8
|
59,69 x 5,34
|
748.410.011
|
749.410.011
|
0.326
|
727518511
|
1 425,00 | Na dotaz | ||
|
75
|
11
|
10
|
IR
|
134.5
|
68.5
|
66.0
|
26
|
34
|
138
|
S110x5
|
6.8
|
74,63 x 5,34
|
748.410.024
|
749.410.024
|
0.516
|
727518212
|
2 280,00 | 2 ks | ||
|
90
|
11
|
10
|
IR
|
134.5
|
68.5
|
66.0
|
26
|
45
|
138
|
S110x5
|
8.2
|
94,62 x 5,34
|
748.410.383
|
749.410.383
|
0.533
|
727518213
|
2 667,00 | 2 ks | ||
|
110
|
11
|
10
|
IR
|
139.5
|
74.0
|
65.5
|
33
|
40
|
161
|
S130x5
|
10.0
|
114,7 x 6,99
|
748.410.248
|
749.410.248
|
0.754
|
727518214
|
3 448,00 | Na dotaz |
FKM
|
d (mm) |
SDR |
PN (bar) |
FM |
L (mm) |
L1 (mm) |
L2 (mm) |
L3 (mm) |
L4 (mm) |
D (mm) |
G (inch) |
e (mm) |
Dimenze |
O-kroužek EPDM |
O-kroužek FKM |
Váha kg |
Obj. kód |
Ceníková cena (Kč) | Skladem | Katalogový list | Přidat do košíku |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20
|
11
|
10
|
IR
|
107.0
|
54.0
|
53.0
|
26
|
37
|
48
|
1
|
1.9
|
20,22 x 3,53
|
748.410.006
|
749.410.006
|
0.047
|
727528506
|
536,00 | Na dotaz | ||
|
25
|
11
|
10
|
IR
|
113.0
|
57.0
|
56.0
|
26
|
36
|
58
|
1 1/4
|
2.3
|
28,17 x 3,53
|
748.410.007
|
749.410.007
|
0.072
|
727528507
|
671,00 | Na dotaz | ||
|
32
|
11
|
10
|
IR
|
119.0
|
60.0
|
59.0
|
26
|
25
|
65
|
1 1/2
|
2.9
|
32,93 x 3,53
|
748.410.008
|
749.410.008
|
0.1
|
727528508
|
680,00 | Na dotaz | ||
|
40
|
11
|
10
|
IR
|
126.0
|
63.0
|
63.0
|
26
|
25
|
79
|
2
|
3.7
|
40,65 x 5,34
|
748.410.009
|
749.410.009
|
0.145
|
727528509
|
1 023,00 | Na dotaz | ||
|
50
|
11
|
10
|
IR
|
131.0
|
65.5
|
65.5
|
26
|
25
|
91
|
2 1/4
|
4.6
|
46,99 x 5,34
|
748.410.010
|
749.410.010
|
0.19
|
727528510
|
1 253,00 | Na dotaz | ||
|
63
|
11
|
10
|
IR
|
137.0
|
69.0
|
68.0
|
26
|
26
|
111
|
2 3/4
|
5.8
|
59,69 x 5,34
|
748.410.011
|
749.410.011
|
0.332
|
727528511
|
1 616,00 | Na dotaz | ||
|
75
|
11
|
10
|
IR
|
134.5
|
68.5
|
66.0
|
26
|
34
|
138
|
S110x5
|
6.8
|
74,63 x 5,34
|
748.410.024
|
749.410.024
|
0.52
|
727528212
|
2 676,00 | Na dotaz | ||
|
90
|
11
|
10
|
IR
|
134.5
|
68.5
|
66.0
|
26
|
45
|
138
|
S110x5
|
8.2
|
94,62 x 5,34
|
748.410.383
|
749.410.383
|
0.533
|
727528213
|
2 944,00 | Na dotaz | ||
|
110
|
11
|
10
|
IR
|
139.5
|
74.0
|
65.5
|
33
|
40
|
161
|
S130x5
|
10.0
|
114,7 x 6,99
|
748.410.248
|
749.410.248
|
0.754
|
727528214
|
3 680,00 | Na dotaz |
