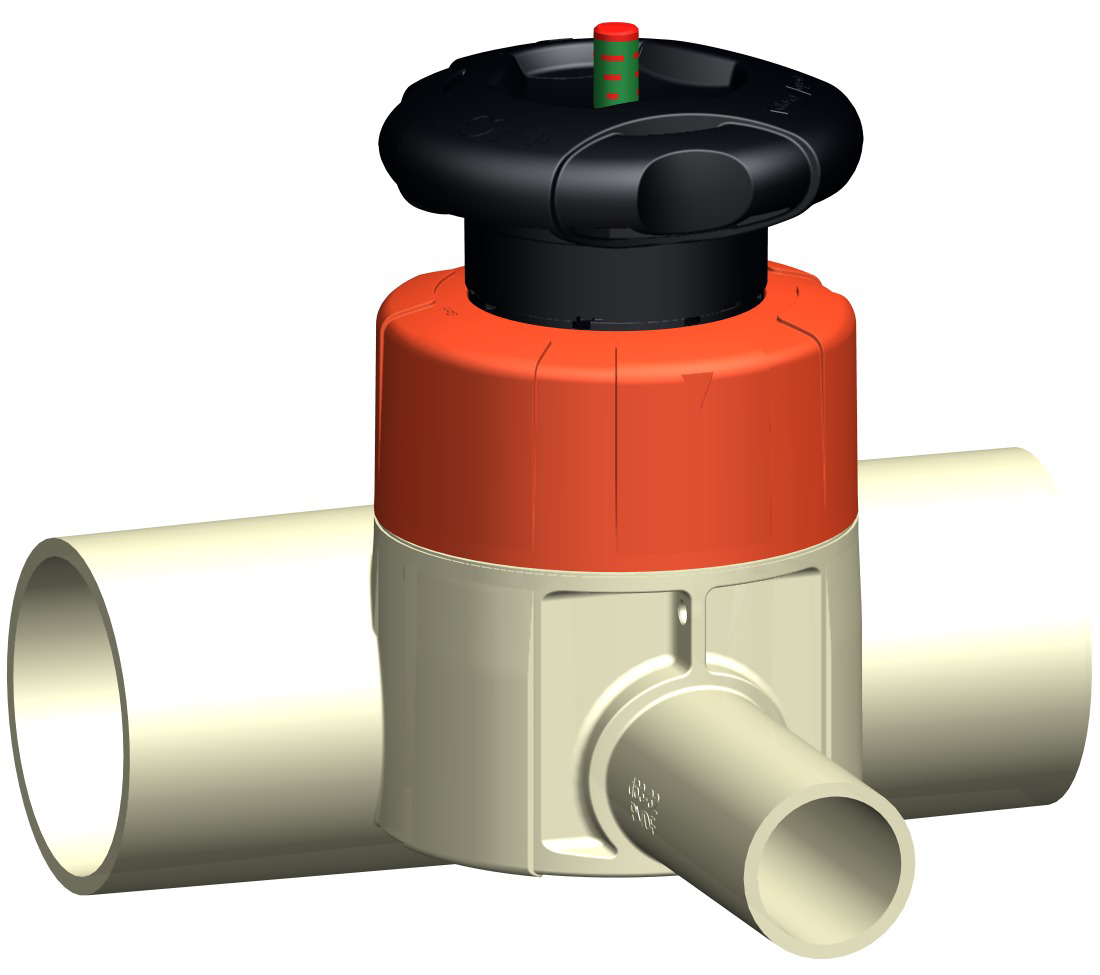

PP-Natur membránový ventil typ 519
Popis
Svařování natupo SDR11 metrické
Model:
Materiál: PP-R bez pigmentu
Dvojnásobná rychlost proudění od předchůdce
Jedna matice nahrazuje šrouby
Ruční kolo se zabudovaným blokovacím mechanismem
Nejmenší možný mrtvý prostor
Dvojnásobná rychlost proudění od předchůdce
Jedna matice nahrazuje šrouby
Ruční kolo se zabudovaným blokovacím mechanismem
Nejmenší možný mrtvý prostor
Možnost:
Individuální konfigurace ventilu
Samonastavovací multifunkční modul s integrovanými koncovými spínači
Samonastavovací multifunkční modul s integrovanými koncovými spínači
Poznámka
* Materiál O-kroužku: FKM
EPDM
|

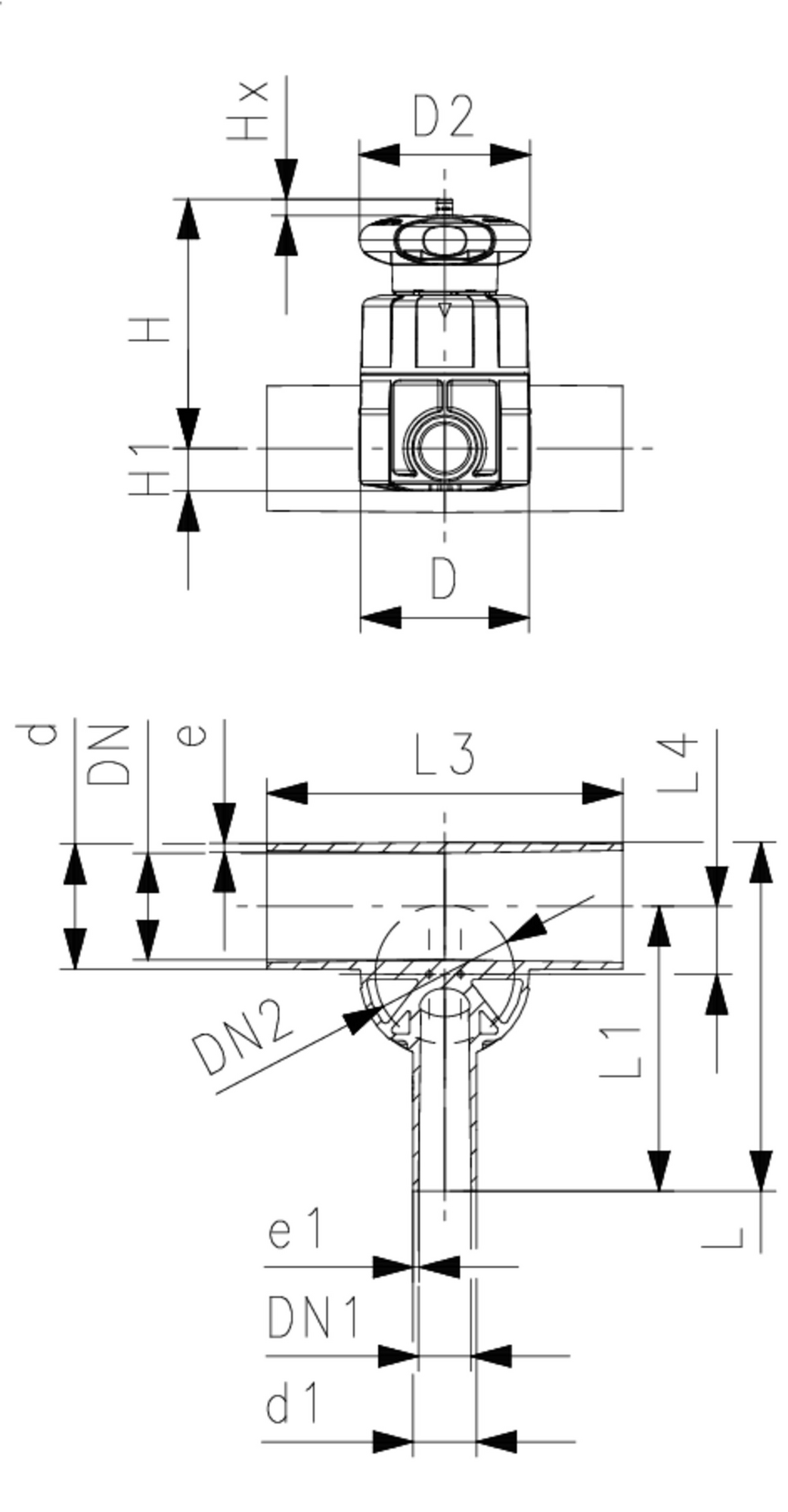

d (mm) |
d1 (mm) |
DN (mm) |
DN1 (mm) |
Rozměr (inch) |
kv-hodnota (Δp=1 bar) (l⁄min) |
Rozměr ventilu d (mm) |
SDR |
PN (bar) |
D (mm) |
D2 (mm) |
H (mm) |
L (mm) |
L1 (mm) |
L3 (mm) |
L4 (mm) |
e (mm) |
Lift = Hx (mm) |
DN2 (mm) |
nejblíže k inch (inch) |
e1 (mm) |
Váha kg |
Obj. kód |
Ceníková cena (Kč) | Skladem | Katalogový list | Přidat do košíku |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20
|
20
|
15
|
15
|
1∕2
|
57
|
20
|
11
|
10
|
65
|
65
|
75
|
117
|
96
|
162
|
12
|
1.9
|
7
|
15
|
1∕2
|
1.9
|
0.312
|
168519101
|
9 580,00 | Na dotaz | ||
|
25
|
20
|
20
|
15
|
3∕4
|
89
|
25
|
11
|
10
|
80
|
65
|
80
|
133
|
108
|
162
|
16
|
2.3
|
10
|
20
|
3∕4
|
1.9
|
0.387
|
168519103
|
9 763,00 | Na dotaz | ||
|
25
|
25
|
20
|
20
|
3∕4
|
118
|
25
|
11
|
10
|
80
|
65
|
80
|
133
|
108
|
162
|
16
|
2.3
|
10
|
20
|
3∕4
|
2.3
|
0.388
|
168519104
|
9 979,00 | Na dotaz | ||
|
32
|
20
|
25
|
15
|
1
|
80
|
25
|
11
|
10
|
80
|
65
|
84
|
142
|
120
|
162
|
19
|
2.9
|
10
|
20
|
1
|
1.9
|
0.414
|
168519107
|
10 223,00 | Na dotaz | ||
|
32
|
25
|
25
|
20
|
1
|
105
|
25
|
11
|
10
|
80
|
65
|
84
|
142
|
120
|
162
|
19
|
2.9
|
10
|
20
|
1
|
2.3
|
0.416
|
168519108
|
10 276,00 | Na dotaz | ||
|
32
|
32
|
25
|
25
|
1
|
231
|
32
|
11
|
10
|
88
|
87
|
107
|
145
|
120
|
160
|
19
|
2.9
|
13
|
25
|
1
|
2.9
|
0.961
|
168519109
|
9 945,00 | Na dotaz | ||
|
40
|
20
|
32
|
15
|
1 1∕4
|
85
|
32
|
11
|
10
|
88
|
87
|
115
|
149
|
128
|
180
|
23
|
3.7
|
13
|
25
|
1 1∕4
|
1.9
|
0.988
|
168519112
|
10 348,00 | Na dotaz | ||
|
40
|
40
|
32
|
32
|
1 1∕4
|
187
|
40
|
11
|
10
|
88
|
87
|
115
|
174
|
153
|
180
|
23
|
3.7
|
13
|
25
|
1 1∕4
|
3.7
|
1.014
|
168519115
|
11 201,00 | Na dotaz | ||
|
50
|
20
|
40
|
15
|
1 1∕2
|
86
|
25
|
11
|
10
|
80
|
65
|
97
|
160
|
134
|
180
|
27
|
4.6
|
10
|
20
|
1 1∕2
|
1.9
|
0.474
|
168519118
|
12 614,00 | Na dotaz | ||
|
50
|
25
|
40
|
20
|
1 1∕2
|
160
|
32
|
11
|
10
|
88
|
87
|
120
|
160
|
134
|
180
|
28
|
4.6
|
13
|
25
|
1 1∕2
|
2.3
|
1.034
|
168519119
|
13 837,00 | Na dotaz | ||
|
50
|
32
|
40
|
25
|
1 1∕2
|
206
|
32
|
11
|
10
|
88
|
87
|
120
|
160
|
134
|
180
|
28
|
4.6
|
13
|
25
|
1 1∕2
|
2.9
|
1.036
|
168519120
|
14 449,00 | Na dotaz | ||
|
63
|
20
|
50
|
15
|
2
|
84
|
25
|
11
|
10
|
80
|
65
|
104
|
177
|
144
|
180
|
33
|
5.8
|
10
|
20
|
2
|
1.9
|
0.513
|
168519125
|
15 535,00 | Na dotaz | ||
|
63
|
25
|
50
|
20
|
2
|
150
|
32
|
11
|
10
|
88
|
87
|
127
|
177
|
144
|
180
|
35
|
5.8
|
13
|
25
|
2
|
2.3
|
1.077
|
168519126
|
15 731,00 | Na dotaz | ||
|
63
|
32
|
50
|
25
|
2
|
184
|
32
|
11
|
10
|
88
|
87
|
127
|
177
|
144
|
180
|
35
|
5.8
|
13
|
25
|
2
|
2.9
|
1.08
|
168519127
|
16 560,00 | Na dotaz |
PTFE/EPDM*
|
d (mm) |
d1 (mm) |
DN (mm) |
DN1 (mm) |
Rozměr (inch) |
kv-hodnota (Δp=1 bar) (l⁄min) |
Rozměr ventilu d (mm) |
SDR |
PN (bar) |
D (mm) |
D2 (mm) |
H (mm) |
L (mm) |
L1 (mm) |
L3 (mm) |
L4 (mm) |
e (mm) |
Lift = Hx (mm) |
DN2 (mm) |
nejblíže k inch (inch) |
e1 (mm) |
Váha kg |
Obj. kód |
Ceníková cena (Kč) | Skladem | Katalogový list | Přidat do košíku |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20
|
20
|
15
|
15
|
1∕2
|
57
|
20
|
11
|
10
|
65
|
65
|
75
|
117
|
96
|
162
|
12
|
1.9
|
7
|
15
|
1∕2
|
1.9
|
0.322
|
168519301
|
13 837,00 | Na dotaz | ||
|
25
|
20
|
20
|
15
|
3∕4
|
89
|
25
|
11
|
10
|
80
|
65
|
80
|
133
|
108
|
162
|
16
|
2.3
|
10
|
20
|
3∕4
|
1.9
|
0.398
|
168519303
|
13 886,00 | Na dotaz | ||
|
25
|
25
|
20
|
20
|
3∕4
|
118
|
25
|
11
|
10
|
80
|
65
|
80
|
133
|
108
|
162
|
16
|
2.3
|
10
|
20
|
3∕4
|
2.3
|
0.399
|
168519304
|
14 005,00 | Na dotaz | ||
|
32
|
20
|
25
|
15
|
1
|
80
|
25
|
11
|
10
|
80
|
65
|
84
|
142
|
120
|
162
|
19
|
2.9
|
10
|
20
|
1
|
1.9
|
0.425
|
168519307
|
14 130,00 | Na dotaz | ||
|
32
|
25
|
25
|
20
|
1
|
105
|
25
|
11
|
10
|
80
|
65
|
84
|
142
|
120
|
162
|
19
|
2.9
|
10
|
20
|
1
|
2.3
|
0.427
|
168519308
|
14 246,00 | Na dotaz | ||
|
32
|
32
|
25
|
25
|
1
|
231
|
32
|
11
|
10
|
88
|
87
|
107
|
145
|
120
|
160
|
19
|
2.9
|
13
|
25
|
1
|
2.9
|
0.981
|
168519309
|
14 571,00 | Na dotaz | ||
|
40
|
20
|
32
|
15
|
1 1∕4
|
85
|
32
|
11
|
10
|
88
|
87
|
115
|
149
|
128
|
180
|
23
|
3.7
|
13
|
25
|
1 1∕4
|
1.9
|
1.008
|
168519312
|
14 794,00 | Na dotaz | ||
|
40
|
40
|
32
|
32
|
1 1∕4
|
187
|
40
|
11
|
10
|
88
|
87
|
115
|
174
|
153
|
180
|
23
|
3.7
|
13
|
25
|
1 1∕4
|
3.7
|
1.034
|
168519315
|
15 682,00 | Na dotaz | ||
|
50
|
20
|
40
|
15
|
1 1∕2
|
86
|
25
|
11
|
10
|
80
|
65
|
97
|
160
|
134
|
180
|
27
|
4.6
|
10
|
20
|
1 1∕2
|
1.9
|
0.485
|
168519318
|
17 510,00 | Na dotaz | ||
|
50
|
25
|
40
|
20
|
1 1∕2
|
160
|
32
|
11
|
10
|
88
|
87
|
120
|
160
|
134
|
180
|
28
|
4.6
|
13
|
25
|
1 1∕2
|
2.3
|
0.605
|
168519319
|
18 795,00 | Na dotaz | ||
|
50
|
32
|
40
|
25
|
1 1∕2
|
206
|
32
|
11
|
10
|
88
|
87
|
120
|
160
|
134
|
180
|
28
|
4.6
|
13
|
25
|
1 1∕2
|
2.9
|
1.056
|
168519320
|
19 591,00 | Na dotaz | ||
|
63
|
20
|
50
|
15
|
2
|
84
|
25
|
11
|
10
|
80
|
65
|
104
|
177
|
144
|
180
|
33
|
5.8
|
10
|
20
|
2
|
1.9
|
0.524
|
168519325
|
22 022,00 | Na dotaz | ||
|
63
|
25
|
50
|
20
|
2
|
150
|
32
|
11
|
10
|
88
|
87
|
127
|
177
|
144
|
180
|
35
|
5.8
|
13
|
25
|
2
|
2.3
|
1.097
|
168519326
|
22 240,00 | Na dotaz | ||
|
63
|
32
|
50
|
25
|
2
|
184
|
32
|
11
|
10
|
88
|
87
|
127
|
177
|
144
|
180
|
35
|
5.8
|
13
|
25
|
2
|
2.9
|
1.1
|
168519327
|
23 411,00 | Na dotaz |
