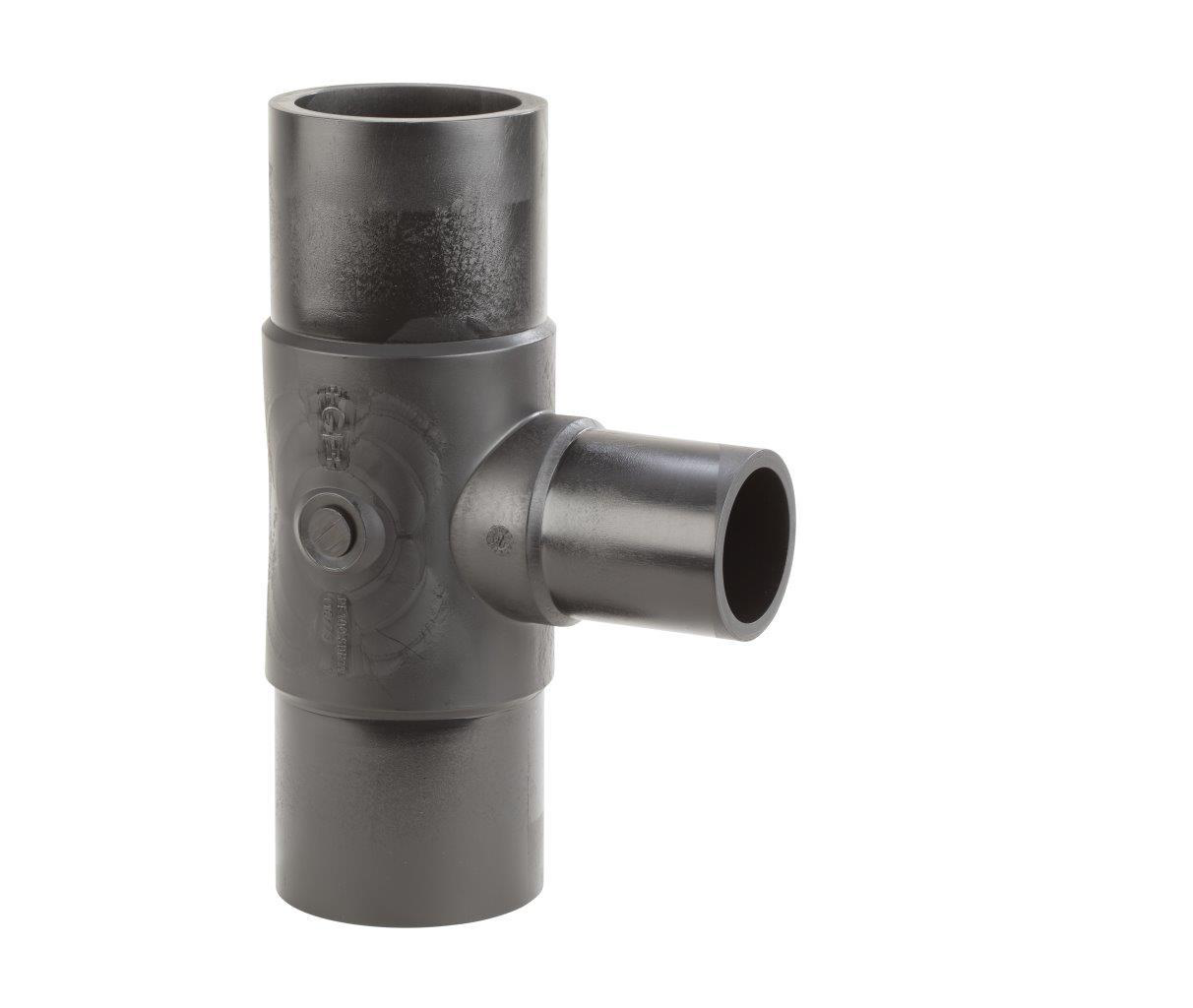

ELGEF Plus T-kus 90° redukovaný PE100
Popis
d63-d315mm / SDR11 / dlouhá verze
Model:
10 bar Plyn / 16 bar Voda
Základní
Kování je vstřikováno
Poznámka
* Schváleno FM 1613 - 15 bar
|

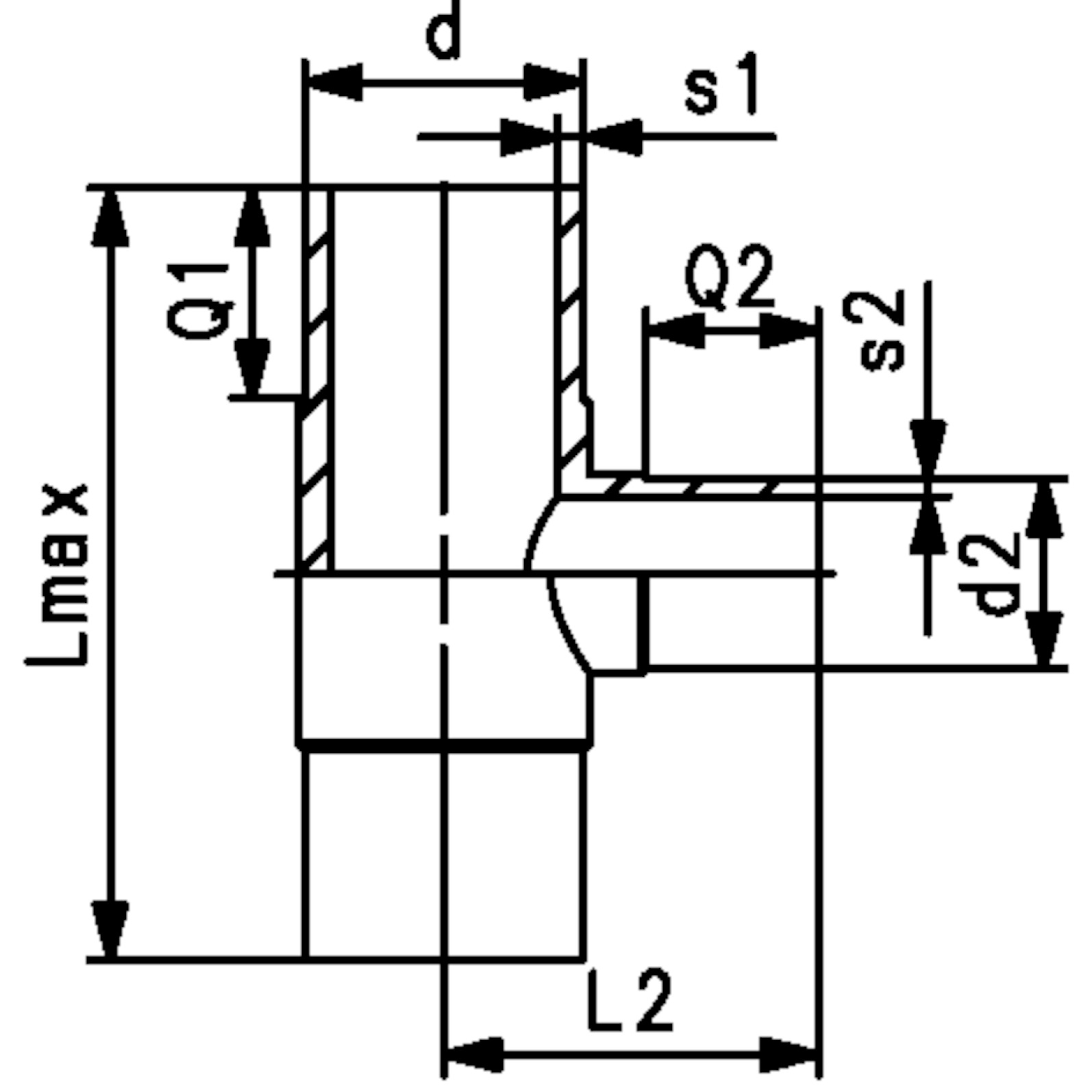

d (mm) |
d2 (mm) |
DN (mm) |
PN (bar) |
L2 (mm) |
Lmax (mm) |
Q1 (mm) |
Q2 (mm) |
s1 (mm) |
s2 (mm) |
Váha kg |
Obj. kód |
Ceníková cena (Kč) | Skladem | Katalogový list | Přidat do košíku |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
63
|
32
|
50
|
16
|
86
|
218
|
65
|
47
|
5.8
|
3.0
|
-
|
753201022
|
864,00 | Na dotaz | ||
|
63
|
40
|
50
|
16
|
107
|
230
|
67
|
58
|
5.8
|
3.7
|
-
|
753201026
|
399,00 | Na dotaz | ||
|
63
|
50
|
50
|
16
|
100
|
218
|
65
|
59
|
5.8
|
4.6
|
-
|
753201021
|
763,00 | Na dotaz | ||
|
75
|
32
|
65
|
16
|
98
|
248
|
73
|
46
|
6.8
|
3.0
|
-
|
753201023
|
1 173,00 | Na dotaz | ||
|
75
|
50
|
65
|
16
|
109
|
248
|
73
|
58
|
6.8
|
4.6
|
-
|
753201024
|
1 173,00 | Na dotaz | ||
|
75
|
63
|
65
|
16
|
118
|
248
|
73
|
65
|
6.8
|
5.8
|
-
|
753201025
|
1 272,00 | Na dotaz | ||
|
90
|
50
|
80
|
16
|
120
|
280
|
79
|
55
|
8.2
|
4.6
|
-
|
753201027
|
1 736,00 | Na dotaz | ||
|
90
|
63
|
80
|
16
|
127
|
282
|
79
|
63
|
8.2
|
5.8
|
-
|
753201029
|
1 183,00 | Na dotaz | ||
|
90
|
75
|
80
|
16
|
132
|
286
|
80
|
75
|
8.2
|
6.8
|
-
|
753201055
|
1 678,00 | Na dotaz | ||
|
110
|
63
|
100
|
16
|
148
|
322
|
87
|
63
|
10.0
|
5.8
|
-
|
753201028
|
2 058,00 | Na dotaz | ||
|
110
|
75
|
100
|
16
|
155
|
324
|
85
|
74
|
10.0
|
6.8
|
-
|
753201131
|
2 811,00 | Na dotaz | ||
|
110
|
90
|
100
|
16
|
164
|
322
|
86
|
79
|
10.0
|
8.2
|
-
|
753201032
|
2 092,00 | Na dotaz | ||
|
125
|
90
|
100
|
16
|
165
|
354
|
90
|
82
|
11.4
|
8.2
|
-
|
753201132
|
3 666,00 | Na dotaz | ||
|
125
|
110
|
100
|
16
|
167
|
350
|
90
|
85
|
11.4
|
10.0
|
-
|
753201133
|
2 950,00 | Na dotaz | ||
|
160
|
63
|
150
|
16
|
174
|
416
|
105
|
65
|
14.6
|
5.8
|
-
|
753201034
|
5 638,00 | Na dotaz | ||
|
160
|
75
|
150
|
16
|
180
|
410
|
103
|
73
|
14.6
|
6.8
|
-
|
753201880
|
6 299,00 | Na dotaz | ||
|
160
|
90
|
150
|
16
|
190
|
415
|
101
|
79
|
14.6
|
8.2
|
-
|
753201036
|
4 360,00 | Na dotaz | ||
|
160
|
110
|
150
|
16
|
200
|
415
|
101
|
82
|
14.6
|
10.0
|
-
|
753201037
|
4 474,00 | Na dotaz | ||
|
180
|
90
|
150
|
16
|
200
|
476
|
108
|
82
|
16.4
|
8.2
|
-
|
753201881
|
8 843,00 | Na dotaz | ||
|
180
|
110
|
150
|
16
|
202
|
480
|
107
|
84
|
16.4
|
10.0
|
-
|
753201882
|
8 843,00 | Na dotaz | ||
|
180
|
160
|
150
|
16
|
220
|
480
|
110
|
101
|
16.4
|
14.6
|
-
|
753201883
|
8 843,00 | Na dotaz | ||
|
200
|
63
|
200
|
16
|
196
|
503
|
122
|
63
|
18.2
|
5.8
|
-
|
753201073
|
14 598,00 | Na dotaz | ||
|
200
|
90
|
200
|
16
|
216
|
500
|
122
|
79
|
18.2
|
8.2
|
-
|
753201074
|
15 021,00 | Na dotaz | ||
|
200
|
110
|
200
|
16
|
219
|
505
|
122
|
82
|
18.2
|
10.0
|
-
|
753201075
|
14 999,00 | Na dotaz | ||
|
200
|
160
|
200
|
16
|
237
|
500
|
122
|
92
|
18.2
|
14.6
|
-
|
753201076
|
14 276,00 | Na dotaz | ||
|
225
|
75
|
200
|
16
|
219
|
560
|
120
|
70
|
20.5
|
6.8
|
-
|
753201039
|
15 137,00 | Na dotaz | ||
|
225
|
90
|
200
|
16
|
228
|
555
|
120
|
80
|
20.5
|
8.2
|
-
|
753201040
|
13 109,00 | Na dotaz | ||
|
225
|
110
|
200
|
16
|
238
|
559
|
120
|
82
|
20.5
|
10.0
|
-
|
753201041
|
12 971,00 | Na dotaz | ||
|
225
|
160
|
200
|
16
|
258
|
555
|
120
|
98
|
20.5
|
14.6
|
-
|
753201042
|
9 964,00 | Na dotaz | ||
|
225
|
180
|
200
|
16
|
284
|
559
|
120
|
105
|
20.5
|
16.4
|
-
|
753201043
|
15 966,00 | Na dotaz | ||
|
250
|
110
|
250
|
16
|
284
|
584
|
130
|
82
|
22.7
|
10.0
|
-
|
753201078
|
27 458,00 | Na dotaz | ||
|
250
|
160
|
250
|
16
|
266
|
586
|
127
|
98
|
22.7
|
14.6
|
-
|
753201079
|
27 111,00 | Na dotaz | ||
|
315
|
90
|
300
|
16
|
165
|
520
|
90
|
83
|
28.6
|
8.2
|
-
|
753201154
|
45 290,00 | Na dotaz | ||
|
315
|
110
|
300
|
16
|
282
|
705
|
150
|
82
|
28.6
|
10.0
|
-
|
753201051
|
22 828,00 | Na dotaz | ||
|
315
|
160
|
300
|
16
|
301
|
705
|
150
|
102
|
28.6
|
14.6
|
-
|
753201052
|
22 828,00 | Na dotaz | ||
|
315
|
200
|
300
|
16
|
313
|
680
|
155
|
117
|
28.6
|
18.2
|
-
|
753201152
|
18 437,00 | Na dotaz | ||
|
315
|
225
|
300
|
16
|
320
|
680
|
153
|
125
|
28.6
|
20.5
|
-
|
753201153
|
26 040,00 | Na dotaz | ||
|
315
|
250
|
300
|
16
|
331
|
695
|
150
|
130
|
28.6
|
22.7
|
-
|
753201054
|
28 831,00 | Na dotaz |
