Redukce, ISO/EN N4
Popis

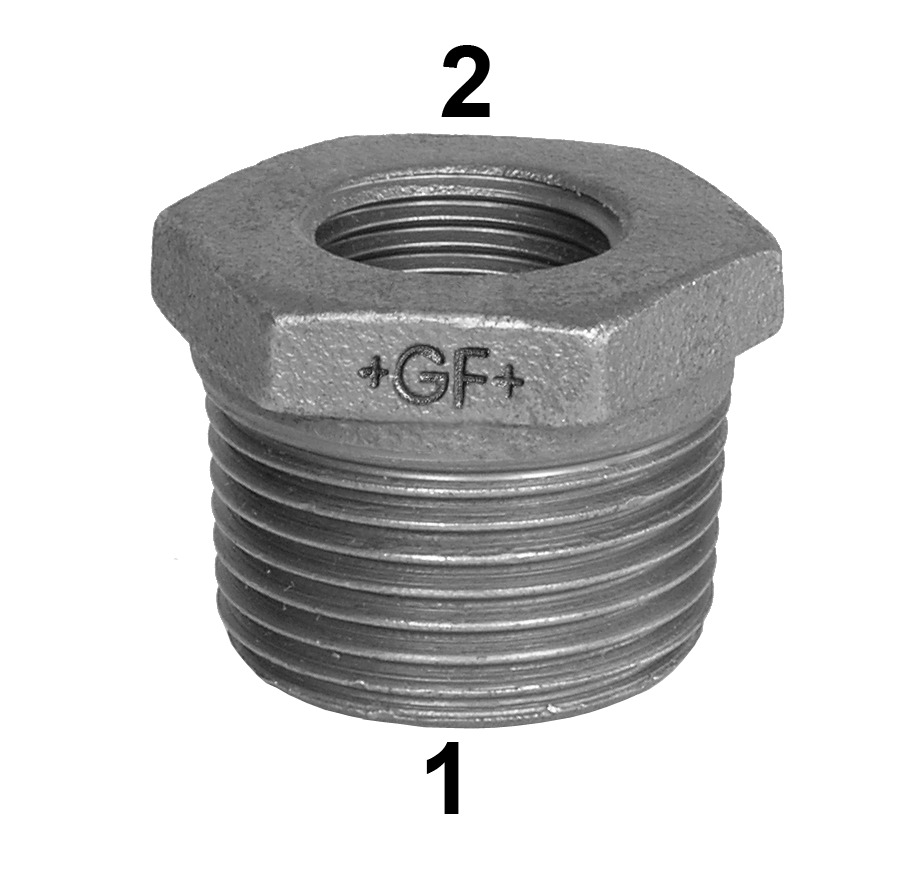

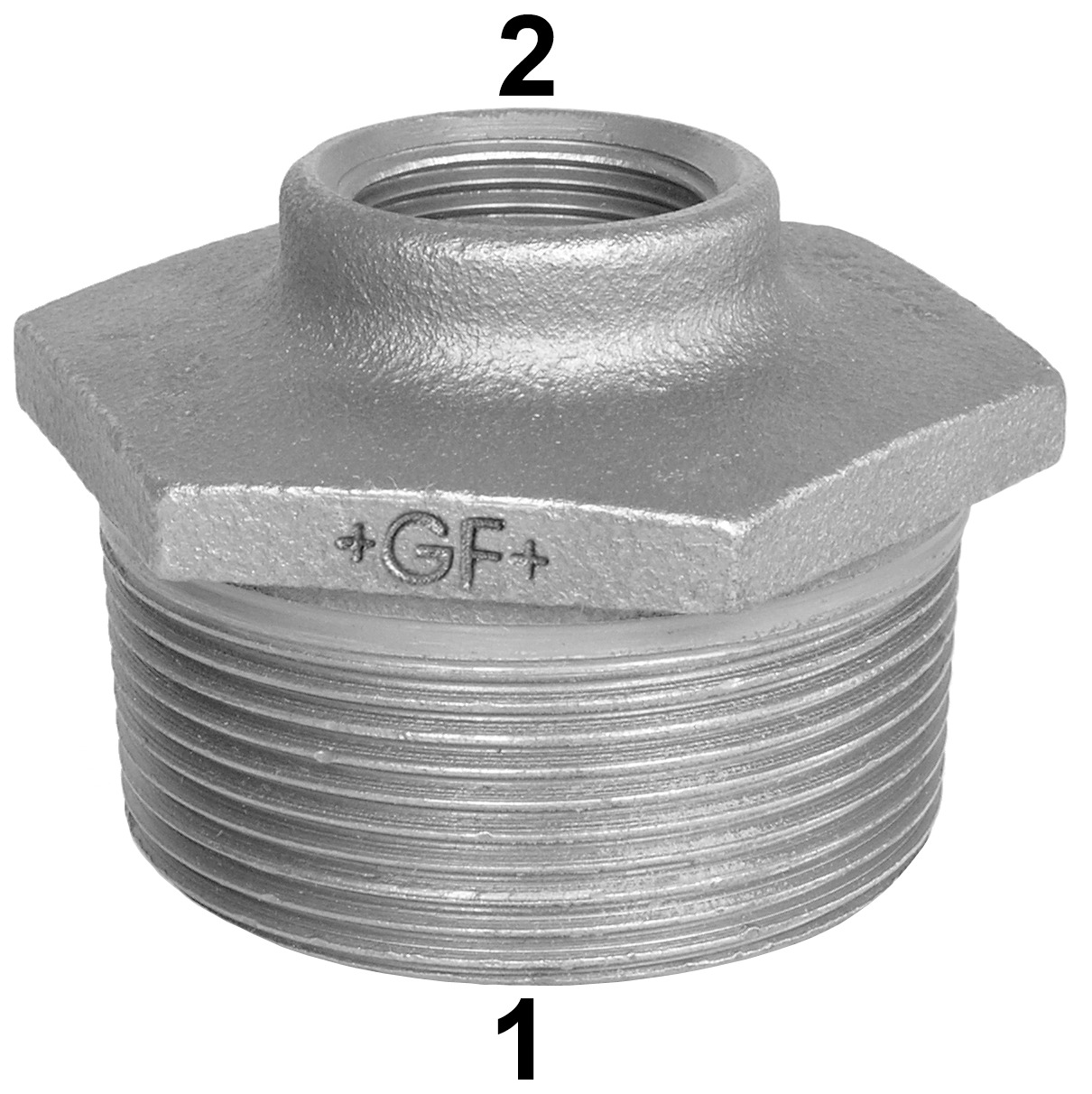

Typ tvarovky 241
Traisen

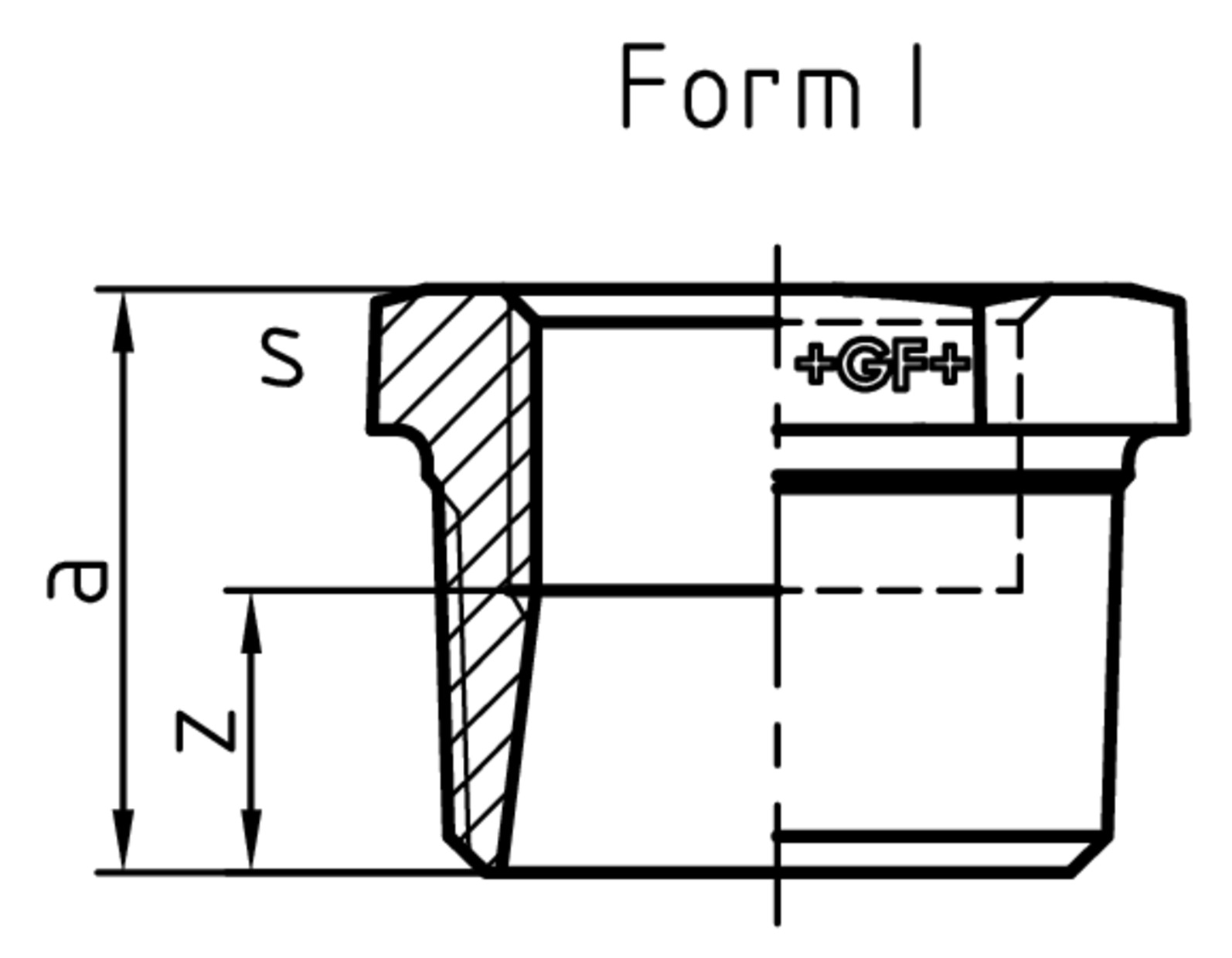

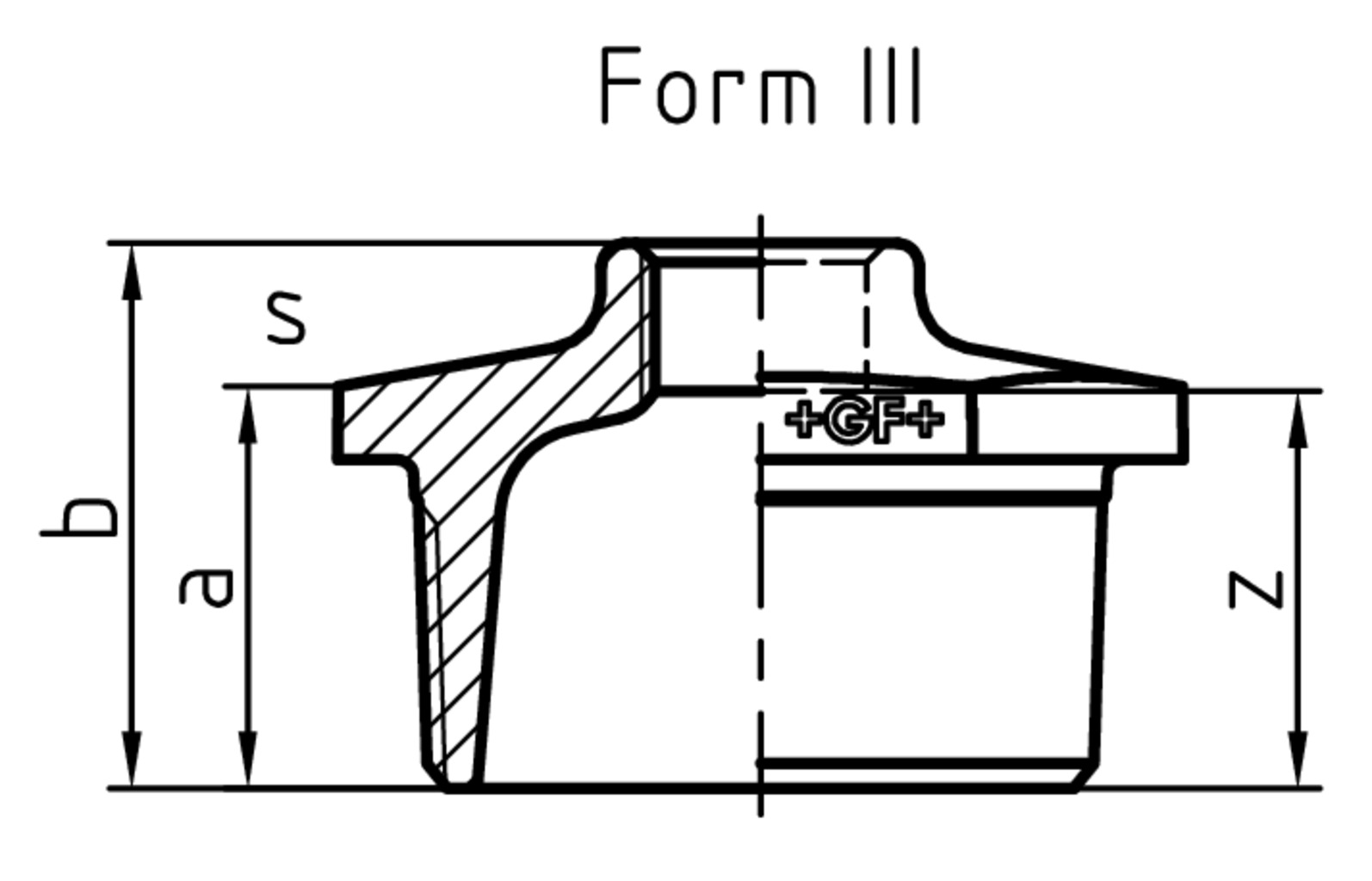

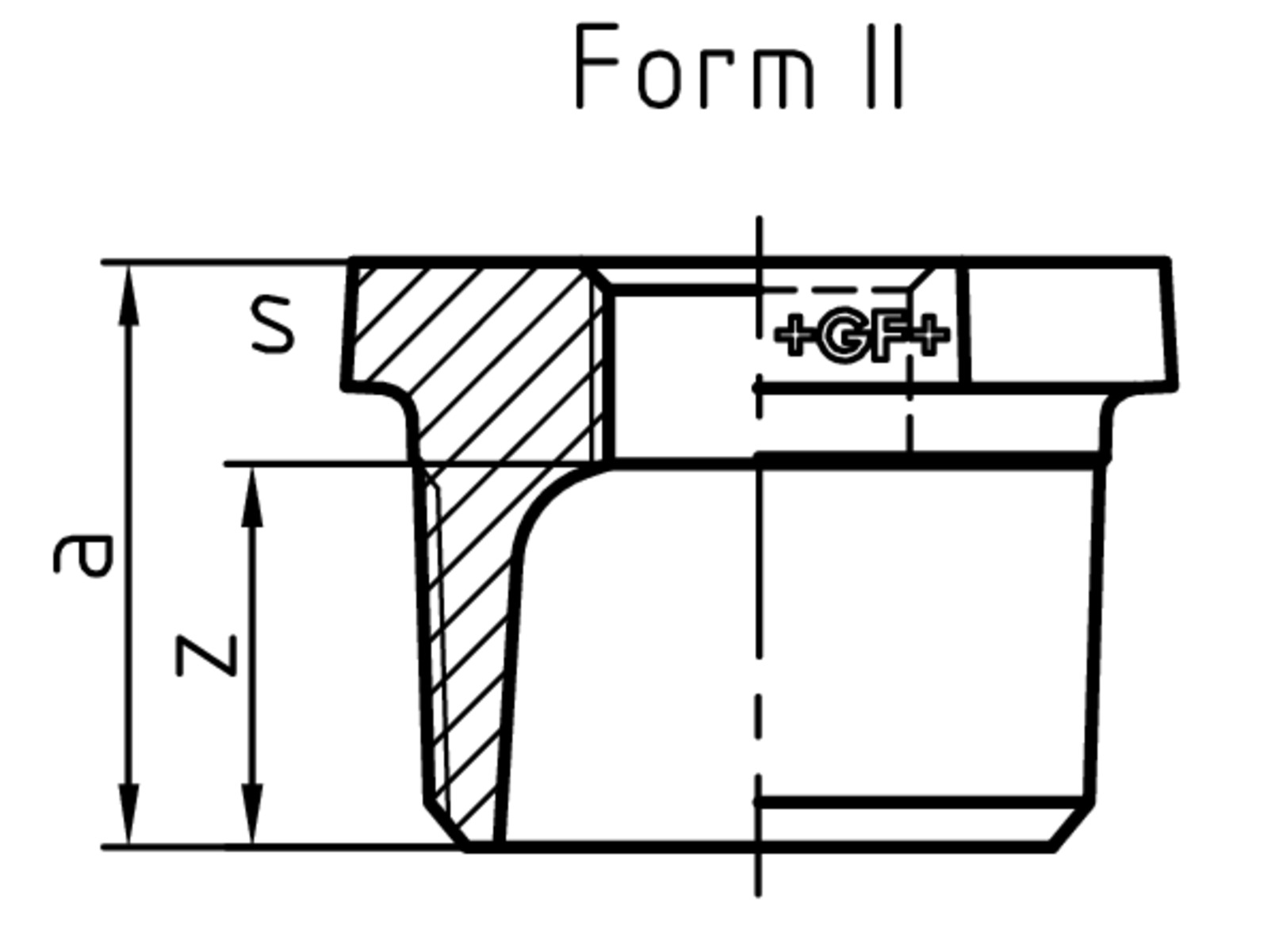

Formy I, II, III jsou k dispozici pouze tak, jak jsou označeny ve sloupci "Formulář", Forma I může být také dodána s průběžným vnitřním závitem (=241D).
ST ... tyto typy tvarovek jsou vyrobeny z oceli (pozinkované = galvanicky pokovené) a nejsou vhodné pro instalace pitné vody.
ST ... tyto typy tvarovek jsou vyrobeny z oceli (pozinkované = galvanicky pokovené) a nejsou vhodné pro instalace pitné vody.
Black
|
EN |
Dim. (1-2) (inch) |
Forma |
a (mm) |
b (mm) |
z (mm) |
s (mm) |
Váha kg |
Obj. kód |
Ceníková cena (Kč) | Skladem | Katalogový list | Přidat do košíku |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST •
|
1∕4 - 1∕8
|
I
|
20
|
-
|
13
|
17
|
0.015
|
770241115
|
60,00 | Na dotaz | ||
|
ST •
|
3∕8 - 1∕8
|
I
|
20
|
-
|
13
|
19
|
0.0265
|
770241116
|
60,00 | Na dotaz | ||
|
ST •
|
3∕8 - 1∕4
|
I
|
20
|
-
|
10
|
19
|
0.018
|
770241117
|
43,00 | Na dotaz | ||
|
•
|
1∕2 - 1∕8
|
II
|
24
|
-
|
17
|
23
|
0.0426
|
770241118
|
56,00 | Na dotaz | ||
|
•
|
1∕2 - 1∕4
|
II
|
24
|
-
|
14
|
23
|
0.0381
|
770241119
|
35,00 | Na dotaz | ||
|
•
|
1∕2 - 3∕8
|
I
|
24
|
-
|
14
|
23
|
0.0316
|
770241120
|
32,00 | Na dotaz | ||
|
•
|
3∕4 - 1∕4
|
II
|
26
|
-
|
16
|
30
|
0.0746
|
770241121
|
63,00 | Na dotaz | ||
|
•
|
3∕4 - 3∕8
|
II
|
27
|
-
|
16
|
30
|
0.0682
|
770241122
|
48,00 | Na dotaz | ||
|
•
|
3∕4 - 1∕2
|
I
|
26
|
-
|
13
|
30
|
0.058
|
770241123
|
34,00 | Na dotaz | ||
|
•
|
1 - 1∕4
|
II
|
29
|
-
|
19
|
36
|
0.1304
|
770241124
|
91,00 | Na dotaz | ||
|
•
|
1 - 3∕8
|
II
|
29
|
-
|
19
|
36
|
0.1099
|
770241125
|
79,00 | Na dotaz | ||
|
•
|
1 - 1∕2
|
II
|
29
|
-
|
16
|
36
|
0.115
|
770241126
|
51,00 | Na dotaz | ||
|
•
|
1 - 3∕4
|
I
|
30
|
-
|
15
|
36
|
0.0905
|
770241127
|
45,00 | Na dotaz | ||
|
•
|
1 1∕4 - 3∕8
|
II
|
31
|
-
|
21
|
46
|
0.199
|
770241128
|
140,00 | Na dotaz | ||
|
•
|
1 1∕4 - 1∕2
|
II
|
31
|
-
|
18
|
46
|
0.197
|
770241129
|
91,00 | Na dotaz | ||
|
•
|
1 1∕4 - 3∕4
|
II
|
31
|
-
|
16
|
46
|
0.176
|
770241130
|
78,00 | Na dotaz | ||
|
•
|
1 1∕4 - 1
|
II
|
31
|
-
|
14
|
46
|
0.1439
|
770241131
|
60,00 | Na dotaz | ||
|
•
|
1 1∕2 - 3∕8
|
II
|
31
|
-
|
21
|
50
|
0.21
|
770241132
|
175,00 | Na dotaz | ||
|
•
|
1 1∕2 - 1∕2
|
II
|
31
|
-
|
18
|
50
|
0.238
|
770241133
|
111,00 | Na dotaz | ||
|
•
|
1 1∕2 - 3∕4
|
II
|
31
|
-
|
16
|
50
|
0.214
|
770241134
|
128,00 | Na dotaz | ||
|
•
|
1 1∕2 - 1
|
II
|
31
|
-
|
14
|
50
|
0.212
|
770241135
|
86,00 | Na dotaz | ||
|
•
|
1 1∕2 - 1 1∕4
|
I
|
33
|
-
|
12
|
50
|
0.136
|
770241136
|
87,00 | Na dotaz | ||
|
•
|
2 - 1∕2
|
III
|
35
|
48
|
35
|
65
|
0.464
|
770241137
|
224,00 | Na dotaz | ||
|
•
|
2 - 3∕4
|
III
|
35
|
49
|
34
|
65
|
0.42
|
770241138
|
223,00 | Na dotaz | ||
|
•
|
2 - 1
|
II
|
37
|
-
|
20
|
65
|
0.426
|
770241139
|
183,00 | Na dotaz | ||
|
•
|
2 - 1 1∕4
|
II
|
37
|
-
|
18
|
65
|
0.3636
|
770241140
|
175,00 | Na dotaz | ||
|
•
|
2 - 1 1∕2
|
II
|
37
|
-
|
18
|
65
|
0.308
|
770241141
|
157,00 | Na dotaz | ||
|
•
|
2 1∕2 - 1
|
III
|
44
|
54
|
37
|
80
|
0.6605
|
770241142
|
368,00 | Na dotaz | ||
|
•
|
2 1∕2 - 1 1∕4
|
III
|
40
|
54
|
37
|
80
|
0.624
|
770241143
|
423,00 | Na dotaz | ||
|
•
|
2 1∕2 - 1 1∕2
|
II
|
42
|
-
|
23
|
80
|
0.65
|
770241144
|
403,00 | Na dotaz | ||
|
•
|
2 1∕2 - 2
|
II
|
40
|
-
|
16
|
80
|
0.491
|
770241145
|
305,00 | Na dotaz | ||
|
•
|
3 - 1
|
III
|
44
|
59
|
42
|
95
|
0.955
|
770241146
|
568,00 | Na dotaz | ||
|
•
|
3 - 1 1∕4
|
III
|
44
|
59
|
40
|
95
|
0.915
|
770241147
|
568,00 | Na dotaz | ||
|
•
|
3 - 1 1∕2
|
III
|
44
|
59
|
40
|
95
|
0.9086
|
770241148
|
531,00 | Na dotaz | ||
|
•
|
3 - 2
|
II
|
44
|
-
|
20
|
95
|
0.895
|
770241149
|
399,00 | Na dotaz | ||
|
•
|
3 - 2 1∕2
|
II
|
44
|
-
|
17
|
96
|
0.592
|
770241150
|
449,00 | Na dotaz | ||
|
•
|
4 - 2
|
III
|
51
|
69
|
45
|
120
|
1.591
|
770241151
|
1 134,00 | Na dotaz | ||
|
•
|
4 - 2 1∕2
|
III
|
51
|
69
|
42
|
120
|
1.595
|
770241152
|
842,00 | Na dotaz | ||
|
•
|
4 - 3
|
II
|
53
|
-
|
23
|
120
|
1.446
|
770241153
|
809,00 | Na dotaz |
Galvanised
|
EN |
Dim. (1-2) (inch) |
Forma |
a (mm) |
b (mm) |
z (mm) |
s (mm) |
Váha kg |
Obj. kód |
Ceníková cena (Kč) | Skladem | Katalogový list | Přidat do košíku |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST •
|
1∕4 - 1∕8
|
I
|
20
|
-
|
13
|
17
|
0.0155
|
770241215
|
71,00 | Na dotaz | ||
|
ST •
|
3∕8 - 1∕8
|
I
|
20
|
-
|
13
|
19
|
0.0268
|
770241216
|
72,00 | Na dotaz | ||
|
ST •
|
3∕8 - 1∕4
|
I
|
20
|
-
|
10
|
19
|
0.0185
|
770241217
|
56,00 | Na dotaz | ||
|
•
|
1∕2 - 1∕8
|
II
|
24
|
-
|
17
|
23
|
0.0408
|
770241218
|
68,00 | 5 ks + | ||
|
•
|
1∕2 - 1∕4
|
II
|
24
|
-
|
14
|
23
|
0.0396
|
770241219
|
43,00 | Na dotaz | ||
|
•
|
1∕2 - 3∕8
|
I
|
24
|
-
|
14
|
23
|
0.0326
|
770241220
|
43,00 | Na dotaz | ||
|
•
|
3∕4 - 1∕4
|
II
|
26
|
-
|
16
|
30
|
0.0765
|
770241221
|
77,00 | Na dotaz | ||
|
•
|
3∕4 - 3∕8
|
II
|
27
|
-
|
16
|
30
|
0.069
|
770241222
|
59,00 | Na dotaz | ||
|
•
|
3∕4 - 1∕2
|
I
|
26
|
-
|
13
|
30
|
0.06
|
770241223
|
46,00 | Na dotaz | ||
|
•
|
1 - 1∕4
|
II
|
29
|
-
|
19
|
36
|
0.1318
|
770241224
|
110,00 | Na dotaz | ||
|
•
|
1 - 3∕8
|
II
|
29
|
-
|
19
|
36
|
0.11
|
770241225
|
97,00 | Na dotaz | ||
|
•
|
1 - 1∕2
|
II
|
29
|
-
|
16
|
36
|
0.115
|
770241226
|
64,00 | Na dotaz | ||
|
•
|
1 - 3∕4
|
I
|
30
|
-
|
15
|
36
|
0.0938
|
770241227
|
60,00 | Na dotaz | ||
|
•
|
1 1∕4 - 3∕8
|
II
|
31
|
-
|
21
|
46
|
0.208
|
770241228
|
178,00 | Na dotaz | ||
|
•
|
1 1∕4 - 1∕2
|
II
|
31
|
-
|
18
|
46
|
0.205
|
770241229
|
107,00 | Na dotaz | ||
|
•
|
1 1∕4 - 3∕4
|
II
|
31
|
-
|
16
|
46
|
0.182
|
770241230
|
96,00 | Na dotaz | ||
|
•
|
1 1∕4 - 1
|
II
|
31
|
-
|
14
|
46
|
0.146
|
770241231
|
73,00 | Na dotaz | ||
|
•
|
1 1∕2 - 3∕8
|
II
|
31
|
-
|
21
|
50
|
0.245
|
770241232
|
216,00 | Na dotaz | ||
|
•
|
1 1∕2 - 1∕2
|
II
|
31
|
-
|
18
|
50
|
0.227
|
770241233
|
143,00 | Na dotaz | ||
|
•
|
1 1∕2 - 3∕4
|
II
|
31
|
-
|
16
|
50
|
0.221
|
770241234
|
157,00 | Na dotaz | ||
|
•
|
1 1∕2 - 1
|
II
|
31
|
-
|
14
|
50
|
0.2075
|
770241235
|
107,00 | Na dotaz | ||
|
•
|
1 1∕2 - 1 1∕4
|
I
|
33
|
-
|
12
|
50
|
0.136
|
770241236
|
108,00 | Na dotaz | ||
|
•
|
2 - 1∕2
|
III
|
35
|
48
|
35
|
65
|
0.4693
|
770241237
|
286,00 | Na dotaz | ||
|
•
|
2 - 3∕4
|
III
|
35
|
49
|
34
|
65
|
0.432
|
770241238
|
281,00 | Na dotaz | ||
|
•
|
2 - 1
|
II
|
37
|
-
|
20
|
65
|
0.438
|
770241239
|
232,00 | Na dotaz | ||
|
•
|
2 - 1 1∕4
|
II
|
37
|
-
|
18
|
65
|
0.3743
|
770241240
|
222,00 | Na dotaz | ||
|
•
|
2 - 1 1∕2
|
II
|
37
|
-
|
18
|
65
|
0.309
|
770241241
|
199,00 | Na dotaz | ||
|
•
|
2 1∕2 - 1
|
III
|
44
|
54
|
37
|
80
|
0.669
|
770241242
|
458,00 | Na dotaz | ||
|
•
|
2 1∕2 - 1 1∕4
|
III
|
40
|
54
|
37
|
80
|
0.64
|
770241243
|
529,00 | Na dotaz | ||
|
•
|
2 1∕2 - 1 1∕2
|
II
|
42
|
-
|
23
|
80
|
0.665
|
770241244
|
500,00 | Na dotaz | ||
|
•
|
2 1∕2 - 2
|
II
|
40
|
-
|
16
|
80
|
0.504
|
770241245
|
385,00 | Na dotaz | ||
|
•
|
3 - 1
|
III
|
44
|
59
|
42
|
95
|
0.968
|
770241246
|
717,00 | Na dotaz | ||
|
•
|
3 - 1 1∕4
|
III
|
44
|
59
|
40
|
95
|
0.938
|
770241247
|
717,00 | Na dotaz | ||
|
•
|
3 - 1 1∕2
|
III
|
44
|
59
|
40
|
95
|
0.88
|
770241248
|
665,00 | Na dotaz | ||
|
•
|
3 - 2
|
II
|
44
|
-
|
20
|
95
|
0.915
|
770241249
|
497,00 | Na dotaz | ||
|
•
|
3 - 2 1∕2
|
II
|
44
|
-
|
17
|
96
|
0.609
|
770241250
|
559,00 | Na dotaz | ||
|
•
|
4 - 2
|
III
|
51
|
69
|
45
|
120
|
1.586
|
770241251
|
1 432,00 | Na dotaz | ||
|
•
|
4 - 2 1∕2
|
III
|
51
|
69
|
42
|
120
|
1.652
|
770241252
|
1 067,00 | Na dotaz | ||
|
•
|
4 - 3
|
II
|
53
|
-
|
23
|
120
|
1.48
|
770241253
|
1 023,00 | Na dotaz |
