Příruby PP-ocel
Popis
Přírubové spoje jsou často nejlepším mechanickým spojením mezi segmenty potrubí nebo pro instalaci ventilů až do velmi velkých rozměrů.
Model:
Materiál: PP (30% vyztužené skleněnými vlákny) s ocelovým kroužkem
Metrika: ISO 7005, EN 1092, ISO 9624
ASME: ANSI/ASME B 16.5 třída 150, ASTM D2024, BS 1560, BS EN 1759
Je vyžadován speciální lemový nákružek ANSI pro d25 - d50 a d90
Metrika: ISO 7005, EN 1092, ISO 9624
ASME: ANSI/ASME B 16.5 třída 150, ASTM D2024, BS 1560, BS EN 1759
Je vyžadován speciální lemový nákružek ANSI pro d25 - d50 a d90
Poznámka
AL: počet otvorů
1) Schváleno FM 1613 – 15 bar
2) Profilovaná volná příruba
1) Schváleno FM 1613 – 15 bar
2) Profilovaná volná příruba
|

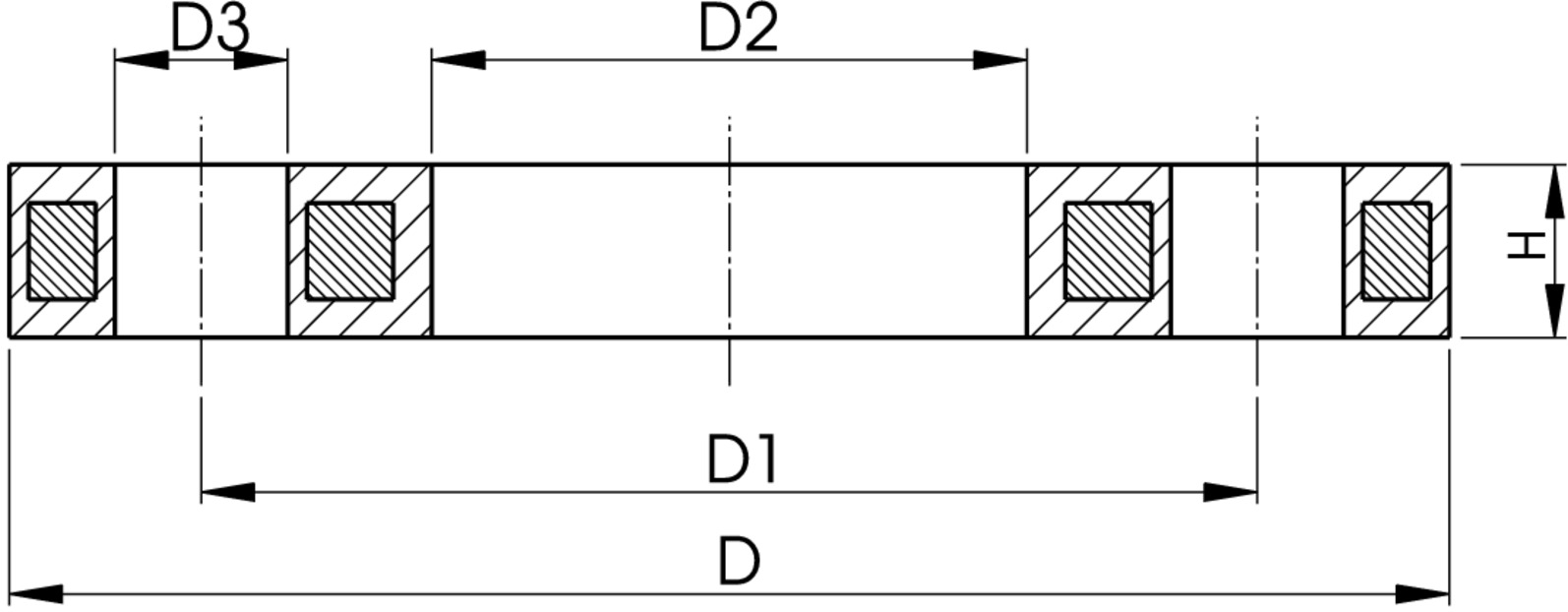

d (mm) |
DN (mm) |
D (inch) |
PN (bar) |
Standard |
Bolt / circle |
Design |
D1 (mm) |
D2 (mm) |
D3 (mm) |
H max. (mm) |
AL |
SC |
Váha kg |
Obj. kód |
Ceníková cena (Kč) | Skladem | Katalogový list | Přidat do košíku |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20
|
15
|
95
|
16
|
Metric
|
PN10
|
Butt/Socket
|
65
|
28
|
14
|
12
|
4
|
M12
|
-
|
727700206
|
262,00 | 5 ks + | ||
|
20
|
15
|
95
|
16
|
ASME
|
class 150
|
Butt/Socket
|
60
|
28
|
16
|
12
|
4
|
M12
|
-
|
727701206
|
396,00 | Na dotaz | ||
|
25
|
20
|
105
|
16
|
Metric
|
PN10
|
Butt/Socket
|
75
|
34
|
14
|
12
|
4
|
M12
|
-
|
727700207
|
316,00 | Na dotaz | ||
|
25
|
20
|
105
|
16
|
ASME
|
class 150
|
Butt/Socket
|
70
|
34
|
16
|
12
|
4
|
M12
|
-
|
727701207
|
448,00 | Na dotaz | ||
|
32
|
25
|
115
|
16
|
Metric
|
PN10
|
Butt/Socket
|
85
|
42
|
14
|
16
|
4
|
M12
|
-
|
727700208
|
389,00 | 5 ks + | ||
|
32
|
25
|
115
|
16
|
ASME
|
class 150
|
Butt/Socket
|
79
|
42
|
16
|
16
|
4
|
M12
|
-
|
727701208
|
582,00 | 2 ks | ||
|
40
|
32
|
140
|
16
|
Metric
|
PN10
|
Butt/Socket
|
100
|
51
|
18
|
16
|
4
|
M16
|
-
|
727700209
|
437,00 | 5 ks + | ||
|
40
|
32
|
140
|
16
|
ASME
|
class 150
|
Butt/Socket
|
89
|
51
|
16
|
16
|
4
|
M16
|
-
|
727701209
|
675,00 | Na dotaz | ||
|
50
|
40
|
150
|
16
|
Metric
|
PN10
|
Butt/Socket
|
110
|
62
|
18
|
20
|
4
|
M16
|
-
|
727700210
|
523,00 | 5 ks + | ||
|
50
|
40
|
150
|
16
|
ASME
|
class 150
|
Butt/Socket
|
98
|
62
|
16
|
18
|
4
|
M16
|
-
|
727701210
|
808,00 | 2 ks | ||
|
63
|
50
|
165
|
16
|
Metric
|
PN10
|
Butt/Socket
|
125
|
78
|
18
|
20
|
4
|
M16
|
-
|
727700211
|
566,00 | 5 ks + | ||
|
63
|
50
|
165
|
16
|
ASME
|
class 150
|
Butt/Socket
|
121
|
78
|
19
|
18
|
4
|
M16
|
-
|
727701211
|
1 042,00 | Na dotaz | ||
|
75
|
65
|
185
|
16
|
Metric
|
PN10
|
Butt/Socket
|
145
|
92
|
18
|
20
|
4
|
M16
|
-
|
727700212
|
635,00 | 5 ks + | ||
|
75
|
65
|
185
|
16
|
ASME
|
class 150
|
Butt/Socket
|
140
|
92
|
19
|
18
|
4
|
M16
|
-
|
727701212
|
1 138,00 | Na dotaz | ||
|
90
|
80
|
200
|
16
|
Metric
|
PN10
|
Butt
|
160
|
108
|
18
|
20
|
8
|
M16
|
-
|
724700313
|
Na dotaz | Na dotaz | ||
|
90
|
80
|
200
|
16
|
Metric
|
PN10
|
Socket
|
160
|
110
|
18
|
20
|
8
|
M16
|
-
|
727700213
|
929,00 | 5 ks + | ||
|
90
|
80
|
200
|
16
|
Metric
|
PN10
|
Butt
|
160
|
108
|
18
|
20
|
8
|
M16
|
-
|
727700313
|
878,00 | 5 ks + | ||
|
90
|
80
|
200
|
16
|
ASME
|
class 150
|
Socket
|
152
|
110
|
19
|
20
|
4
|
M16
|
-
|
727701213
|
1 363,00 | Na dotaz | ||
|
90
|
80
|
200
|
16
|
ASME
|
class 150
|
Butt
|
152
|
108
|
19
|
20
|
4
|
M16
|
-
|
727701313
|
1 363,00 | Na dotaz | ||
|
110
|
100
|
223
|
16
|
Metric
|
PN10
|
Butt
|
180
|
128
|
18
|
20
|
8
|
M16
|
-
|
724700314
|
Na dotaz | Na dotaz | ||
|
110
|
100
|
220
|
16
|
Metric
|
PN10
|
Socket
|
180
|
133
|
18
|
20
|
8
|
M16
|
-
|
727700214
|
1 140,00 | 5 ks + | ||
|
110
|
100
|
220
|
16
|
Metric
|
PN10
|
Butt
|
180
|
128
|
18
|
20
|
8
|
M16
|
-
|
727700314
|
977,00 | 5 ks + | ||
|
110
|
100
|
229
|
16
|
ASME
|
class 150
|
Socket
|
190
|
133
|
19
|
20
|
8
|
M16
|
-
|
727701214
|
1 667,00 | Na dotaz | ||
|
110
|
100
|
229
|
16
|
ASME
|
class 150
|
Butt
|
190
|
128
|
19
|
20
|
8
|
M16
|
-
|
727701314
|
1 667,00 | 5 ks + | ||
|
125
|
100
|
223
|
16
|
Metric
|
PN10
|
Butt
|
180
|
135
|
18
|
20
|
8
|
M16
|
-
|
724700315
|
Na dotaz | Na dotaz | ||
|
125
|
100
|
220
|
16
|
Metric
|
PN10
|
Butt
|
180
|
135
|
18
|
20
|
8
|
M16
|
-
|
727700315
|
977,00 | 3 ks | ||
|
125
|
125
|
250
|
16
|
Metric
|
PN10
|
Socket
|
210
|
150
|
18
|
26
|
8
|
M16
|
-
|
727700815
|
1 595,00 | 2 ks | ||
|
140
|
125
|
250
|
16
|
Metric
|
PN10
|
Butt
|
210
|
158
|
18
|
24
|
8
|
M16
|
-
|
724700316
|
Na dotaz | Na dotaz | ||
|
140
|
125
|
250
|
16
|
Metric
|
PN10
|
Butt
|
210
|
158
|
18
|
24
|
8
|
M16
|
-
|
727700716
|
1 440,00 | 5 ks + | ||
|
140
|
125
|
250
|
16
|
Metric
|
PN10
|
Socket
|
210
|
167
|
18
|
26
|
8
|
M16
|
-
|
727700816
|
1 595,00 | Na dotaz | ||
|
160
|
150
|
285
|
16
|
Metric
|
PN10
|
Butt
|
240
|
178
|
22
|
28
|
8
|
M20
|
-
|
724700317
|
Na dotaz | Na dotaz | ||
|
160
|
150
|
285
|
16
|
Metric/ASME
|
PN10/class 150
|
Butt
|
240
|
178
|
22
|
24
|
8
|
M20
|
-
|
727700717
|
1 773,00 | 5 ks + | ||
|
160
|
150
|
285
|
16
|
Metric/ASME
|
PN10/class 150
|
Socket
|
240
|
190
|
22
|
26
|
8
|
M20
|
-
|
727700817
|
1 963,00 | 5 ks + | ||
|
180
|
150
|
285
|
16
|
Metric
|
PN10
|
Butt
|
240
|
188
|
22
|
28
|
8
|
M20
|
-
|
724700318
|
Na dotaz | Na dotaz | ||
|
180
|
150
|
285
|
16
|
Metric/ASME
|
PN10
|
Butt
|
240
|
188
|
22
|
24
|
8
|
M20
|
-
|
727700718
|
1 773,00 | Na dotaz | ||
|
200
|
200
|
344
|
16
|
Metric
|
PN16
|
Butt
|
295
|
235
|
22
|
31
|
12
|
M20
|
-
|
724700319
|
3 289,00 | Na dotaz | ||
|
200
|
200
|
340
|
16
|
Metric/ASME
|
PN10/class 150
|
Butt
|
295
|
235
|
22
|
27
|
8
|
M20
|
-
|
727700719
|
2 562,00 | 5 ks + | ||
|
200
|
200
|
340
|
16
|
Metric/ASME
|
PN10/class 150
|
Socket
|
295
|
226
|
22
|
29
|
8
|
M20
|
-
|
727700819
|
2 782,00 | 5 ks + | ||
|
225
|
200
|
344
|
16
|
Metric
|
PN16
|
Butt
|
295
|
238
|
22
|
31
|
12
|
M20
|
-
|
724700320
|
3 289,00 | Na dotaz | ||
|
225
|
200
|
340
|
16
|
Metric/ASME
|
PN10/class 150
|
Butt
|
295
|
238
|
22
|
27
|
8
|
M20
|
-
|
727700720
|
2 562,00 | 5 ks + | ||
|
225
|
200
|
340
|
16
|
Metric/ASME
|
PN10/class 150
|
Socket
|
295
|
250
|
22
|
29
|
8
|
M20
|
-
|
727700820
|
2 841,00 | Na dotaz | ||
|
250
|
250
|
410
|
16
|
Metric
|
PN16
|
Butt
|
355
|
288
|
26
|
35
|
12
|
M24
|
-
|
724700321
|
3 995,00 | Na dotaz | ||
|
250
|
225
|
395
|
16
|
Metric
|
PN10
|
Socket
|
325
|
277
|
22
|
32
|
8
|
M20
|
-
|
727700031
|
3 530,00 | Na dotaz | ||
|
250
|
250
|
406
|
10
|
ASME
|
class 150
|
Butt
|
362
|
293
|
25
|
30
|
12
|
M24
|
-
|
727701321
|
8 468,00 | Na dotaz | ||
|
250
|
250
|
395
|
16
|
Metric
|
PN10
|
Butt
|
350
|
288
|
22
|
30
|
12
|
M20
|
-
|
727700721
|
3 252,00 | Na dotaz | ||
|
250
|
250
|
395
|
16
|
Metric
|
PN10
|
Socket
|
350
|
277
|
22
|
32
|
12
|
M20
|
-
|
727700821
|
3 530,00 | Na dotaz | ||
|
280
|
250
|
410
|
16
|
Metric
|
PN16
|
Butt
|
355
|
294
|
26
|
36
|
12
|
M24
|
-
|
724700322
|
3 995,00 | Na dotaz | ||
|
280
|
250
|
395
|
16
|
Metric
|
PN10
|
Butt
|
350
|
294
|
22
|
30
|
12
|
M20
|
-
|
727700722
|
3 252,00 | Na dotaz | ||
|
280
|
250
|
395
|
16
|
Metric
|
PN10
|
Socket
|
350
|
310
|
22
|
32
|
12
|
M20
|
-
|
727700822
|
3 530,00 | Na dotaz | ||
|
315
|
300
|
455
|
16
|
Metric
|
PN16
|
Butt
|
410
|
338
|
26
|
43
|
12
|
M24
|
-
|
724700323
|
6 108,00 | Na dotaz | ||
|
315
|
300
|
445
|
16
|
Metric
|
PN10
|
Butt
|
400
|
338
|
22
|
34
|
12
|
M20
|
-
|
727700723
|
4 749,00 | Na dotaz | ||
|
315
|
300
|
445
|
16
|
Metric
|
PN10
|
Socket
|
400
|
348
|
22
|
36
|
12
|
M20
|
-
|
727700823
|
5 266,00 | Na dotaz | ||
|
315
|
300
|
483
|
10
|
ASME
|
class 150
|
Butt
|
432
|
338
|
25
|
34
|
12
|
M24
|
-
|
727701322
|
12 550,00 | Na dotaz | ||
|
355
|
350
|
521
|
16
|
Metric
|
PN16
|
Butt
|
470
|
376
|
26
|
55
|
16
|
M24
|
-
|
724700324
|
11 558,00 | Na dotaz | ||
|
355
|
350
|
515
|
16
|
Metric
|
PN10
|
Butt
|
460
|
376
|
23
|
40
|
16
|
M20
|
-
|
727700724
|
9 423,00 | Na dotaz | ||
|
355
|
350
|
515
|
16
|
Metric
|
PN10
|
Socket
|
460
|
388
|
23
|
42
|
16
|
M20
|
-
|
727700824
|
10 238,00 | Na dotaz | ||
|
355
|
350
|
540
|
10
|
ASME
|
class 150
|
Butt
|
476
|
376
|
29
|
42
|
12
|
M27
|
-
|
727701323
|
23 763,00 | Na dotaz | ||
|
400
|
400
|
582
|
16
|
Metric
|
PN16
|
Butt
|
525
|
430
|
30
|
56
|
16
|
M27
|
-
|
724700325
|
13 155,00 | Na dotaz | ||
|
400
|
400
|
574
|
16
|
Metric
|
PN10
|
Butt
|
515
|
430
|
26
|
40
|
16
|
M24
|
-
|
727700725
|
10 723,00 | Na dotaz | ||
|
400
|
400
|
574
|
16
|
Metric
|
PN10
|
Socket
|
515
|
442
|
26
|
42
|
16
|
M24
|
-
|
727700825
|
11 651,00 | Na dotaz | ||
|
400
|
400
|
597
|
10
|
ASME
|
class 150
|
Butt
|
539
|
429
|
29
|
44
|
16
|
M27
|
-
|
727701324
|
27 046,00 | Na dotaz | ||
|
450
|
500
|
685
|
10
|
Metric
|
PN10
|
Butt
|
620
|
517
|
26
|
56
|
20
|
M24
|
-
|
724700426
|
17 520,00 | Na dotaz | ||
|
500
|
500
|
685
|
10
|
Metric
|
PN10
|
Butt
|
620
|
533
|
26
|
56
|
20
|
M24
|
-
|
724700427
|
17 520,00 | Na dotaz | ||
|
560
|
600
|
796
|
10
|
Metric
|
PN10
|
Butt
|
725
|
618
|
30
|
68
|
20
|
M27
|
-
|
724700428
|
25 825,00 | Na dotaz | ||
|
630
|
600
|
800
|
10
|
Metric
|
PN10
|
Butt
|
725
|
645
|
30
|
68
|
20
|
M27
|
-
|
724700429
|
22 358,00 | Na dotaz | ||
|
710
|
700
|
912
|
6
|
Metric
|
PN10
|
Butt
|
840
|
740
|
30
|
49
|
24
|
M27
|
-
|
724700430
|
34 080,00 | Na dotaz | ||
|
800
|
800
|
1026
|
6
|
Metric
|
PN10
|
Butt
|
950
|
843
|
33
|
58
|
24
|
M30
|
-
|
724700431
|
40 897,00 | Na dotaz | ||
|
900
|
900
|
1129
|
6
|
Metric
|
PN10
|
Butt
|
1050
|
947
|
33
|
62
|
28
|
M30
|
-
|
724700432
|
50 856,00 | Na dotaz | ||
|
450
|
500
|
712
|
10
|
ASME
|
class 150
|
Butt
|
635
|
540
|
32
|
53
|
20
|
M30
|
-
|
727701325
|
35 768,00 | Na dotaz |
