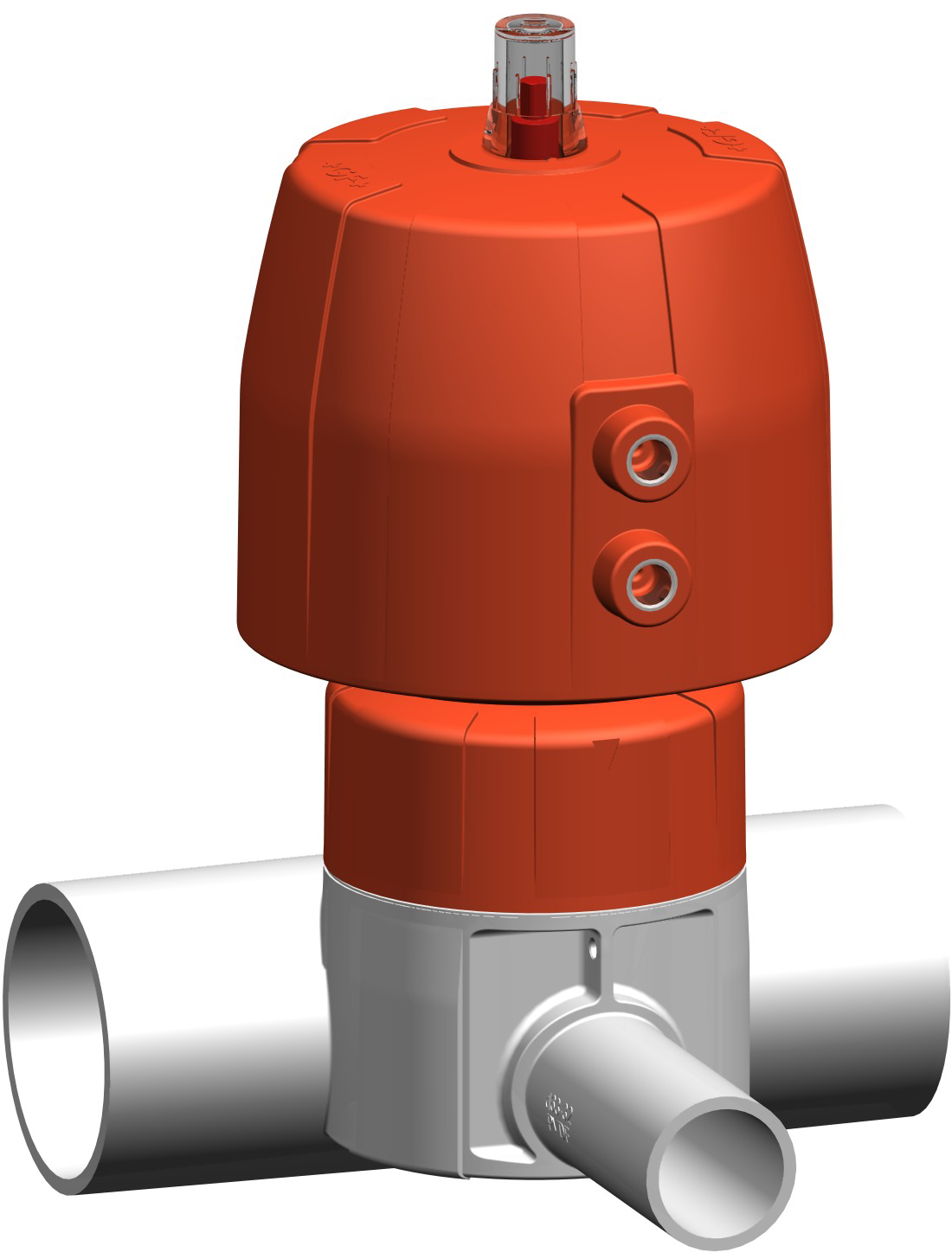

PVDF Plus Membránový ventil DIASTAR TenPlus
Popis
FC (bez vzduchu zavřeno) s výstupem natupo metrické SDR21
Model:
Materiál: PVDF-HP
Dvojnásobná rychlost proudění od předchůdce
Jedna matice nahrazuje šrouby
Rotující napojení vzduchu při 90° intervalech
Nejmenší možný mrtvý prostor
Dvojnásobná rychlost proudění od předchůdce
Jedna matice nahrazuje šrouby
Rotující napojení vzduchu při 90° intervalech
Nejmenší možný mrtvý prostor
Možnost:
Individuální konfigurace ventilu
Obsáhlá nabídka příslušenství
Obsáhlá nabídka příslušenství
Poznámka
Pracovní tlak: obě strany
* Dostupné na vyžádání
*Materiál O-kroužku: FKM bílá
* Dostupné na vyžádání
*Materiál O-kroužku: FKM bílá
PTFE/EPDM*
|

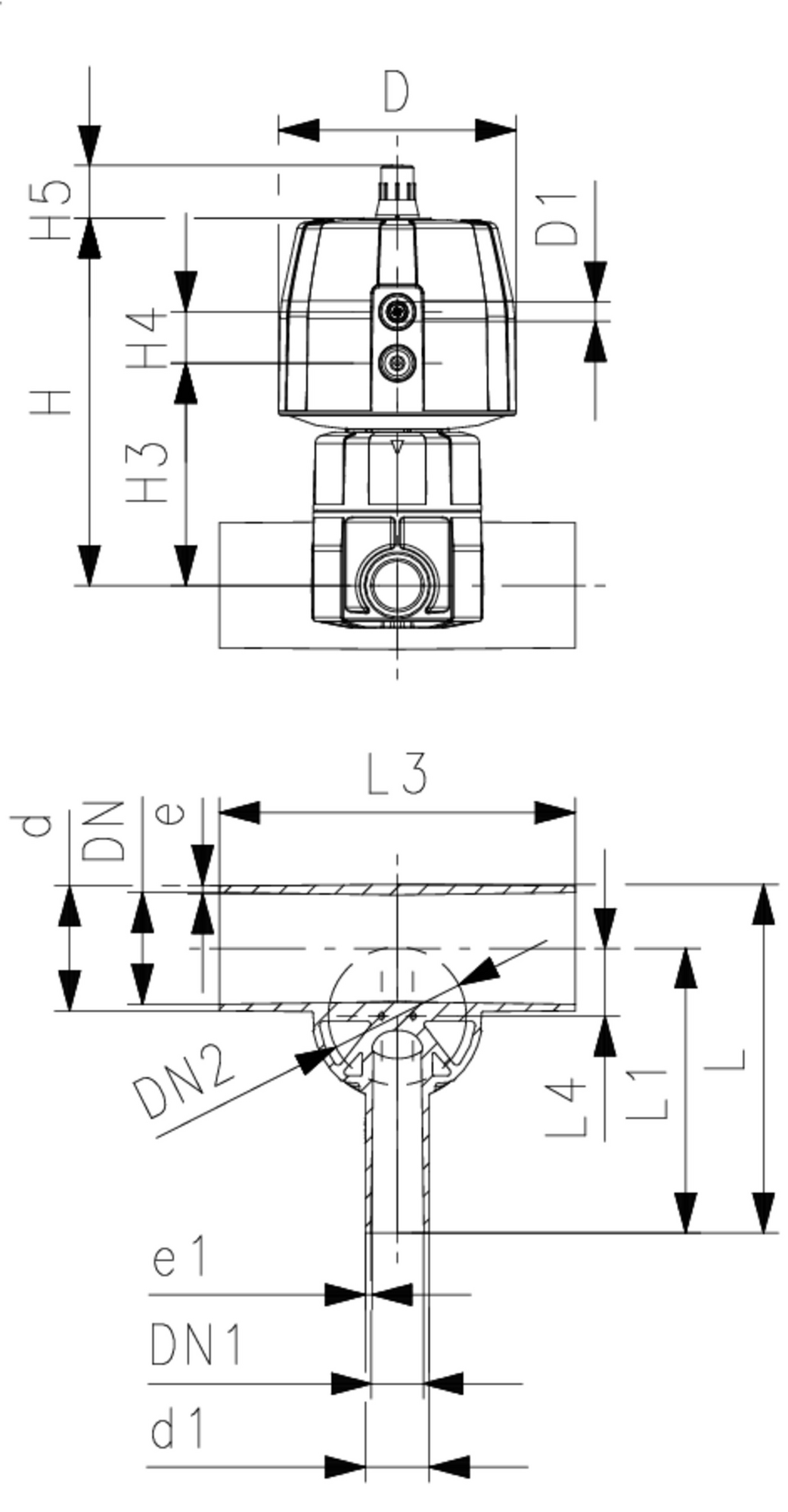

d (mm) |
d1 (mm) |
DN (mm) |
DN1 (mm) |
Rozměr (inch) |
PN (bar) |
kv-hodnota (Δp=1 bar) (l⁄min) |
Rozměr ventilu d (mm) |
D (mm) |
D1 (inch) |
H (mm) |
H3 (mm) |
H4 (mm) |
H5 (mm) |
L (mm) |
L1 (mm) |
L3 (mm) |
L4 (mm) |
e (mm) |
Lift = Hx (mm) |
DN2 (mm) |
e1 (mm) |
Váha kg |
Obj. kód |
Ceníková cena (Kč) | Skladem | Katalogový list | Přidat do košíku |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20
|
20
|
15
|
15
|
1∕2
|
10
|
57
|
20
|
96
|
1∕8
|
130
|
71
|
25
|
16
|
117
|
96
|
162
|
12
|
1.9
|
7
|
15
|
2
|
1.112
|
181689301
|
26 220,00 | Na dotaz | ||
|
25
|
20
|
20
|
15
|
3∕4
|
10
|
89
|
25
|
96
|
1∕8
|
131
|
72
|
25
|
16
|
133
|
108
|
162
|
16
|
1.9
|
10
|
20
|
2
|
1.23
|
181689303
|
27 635,00 | Na dotaz | ||
|
25
|
25
|
20
|
20
|
3∕4
|
10
|
118
|
25
|
96
|
1∕8
|
131
|
72
|
25
|
16
|
133
|
108
|
162
|
16
|
1.9
|
10
|
20
|
2
|
1.233
|
181689304
|
28 228,00 | Na dotaz | ||
|
32
|
20
|
25
|
15
|
1
|
10
|
80
|
25
|
96
|
1∕8
|
135
|
76
|
25
|
16
|
142
|
120
|
162
|
19
|
2.4
|
10
|
20
|
2
|
-
|
181689307
|
Na dotaz | Na dotaz | ||
|
32
|
25
|
25
|
20
|
1
|
10
|
105
|
25
|
96
|
1∕8
|
135
|
76
|
25
|
16
|
142
|
120
|
162
|
19
|
2.4
|
10
|
20
|
2
|
-
|
181689308
|
Na dotaz | Na dotaz | ||
|
32
|
32
|
25
|
25
|
1
|
10
|
231
|
32
|
120
|
1∕8
|
167
|
93
|
26
|
26
|
145
|
120
|
160
|
19
|
2.4
|
13
|
25
|
2
|
-
|
181689309
|
Na dotaz | Na dotaz | ||
|
40
|
20
|
32
|
15
|
1 1∕4
|
10
|
85
|
32
|
120
|
1∕8
|
175
|
101
|
26
|
26
|
149
|
128
|
180
|
23
|
2.4
|
13
|
25
|
2
|
-
|
181689312
|
Na dotaz | Na dotaz | ||
|
40
|
25
|
32
|
20
|
1 1∕4
|
10
|
119
|
32
|
120
|
1∕8
|
175
|
101
|
26
|
26
|
149
|
128
|
180
|
23
|
2.4
|
13
|
25
|
2
|
-
|
181689313
|
Na dotaz | Na dotaz | ||
|
40
|
32
|
32
|
25
|
1 1∕4
|
10
|
153
|
32
|
120
|
1∕8
|
175
|
101
|
26
|
26
|
149
|
128
|
180
|
23
|
2.4
|
13
|
25
|
2
|
-
|
181689314
|
Na dotaz | Na dotaz | ||
|
40
|
40
|
32
|
32
|
1 1∕4
|
10
|
187
|
32
|
120
|
1∕8
|
175
|
101
|
26
|
26
|
174
|
153
|
180
|
23
|
2.4
|
13
|
25
|
2
|
-
|
181689315
|
Na dotaz | Na dotaz | ||
|
50
|
20
|
40
|
15
|
1 1∕2
|
10
|
86
|
25
|
96
|
1∕8
|
148
|
90
|
25
|
16
|
160
|
134
|
180
|
27
|
3.0
|
10
|
20
|
2
|
-
|
181689318
|
Na dotaz | Na dotaz | ||
|
50
|
25
|
40
|
20
|
1 1∕2
|
10
|
160
|
32
|
120
|
1∕8
|
180
|
106
|
26
|
26
|
160
|
134
|
180
|
28
|
3.0
|
13
|
25
|
2
|
-
|
181689319
|
Na dotaz | Na dotaz | ||
|
50
|
32
|
40
|
25
|
1 1∕2
|
10
|
206
|
32
|
120
|
1∕8
|
180
|
106
|
26
|
26
|
160
|
134
|
180
|
28
|
3.0
|
13
|
25
|
2
|
-
|
181689320
|
Na dotaz | Na dotaz | ||
|
50
|
40
|
40
|
32
|
1 1∕2
|
10
|
524
|
63
|
180
|
1∕4
|
249
|
135
|
37
|
26
|
209
|
169
|
209
|
33
|
3.0
|
23
|
50
|
2
|
-
|
181689321
|
Na dotaz | Na dotaz | ||
|
50
|
50
|
40
|
40
|
1 1∕2
|
10
|
667
|
63
|
180
|
1∕4
|
249
|
135
|
37
|
26
|
209
|
169
|
209
|
33
|
3.0
|
23
|
50
|
3
|
-
|
181689322
|
Na dotaz | Na dotaz | ||
|
63
|
20
|
50
|
15
|
2
|
10
|
84
|
25
|
96
|
1∕8
|
155
|
96
|
25
|
16
|
177
|
144
|
180
|
33
|
3.0
|
10
|
20
|
2
|
-
|
181689325
|
Na dotaz | Na dotaz | ||
|
63
|
25
|
50
|
20
|
2
|
10
|
150
|
32
|
120
|
1∕8
|
187
|
113
|
26
|
26
|
177
|
144
|
180
|
35
|
3.0
|
13
|
25
|
2
|
-
|
181689326
|
Na dotaz | Na dotaz | ||
|
63
|
32
|
50
|
25
|
2
|
10
|
184
|
32
|
120
|
1∕8
|
187
|
113
|
26
|
26
|
177
|
144
|
180
|
35
|
3.0
|
13
|
25
|
2
|
-
|
181689327
|
Na dotaz | Na dotaz | ||
|
63
|
40
|
50
|
32
|
2
|
10
|
471
|
63
|
180
|
1∕4
|
255
|
141
|
37
|
26
|
225
|
192
|
220
|
39
|
3.0
|
23
|
50
|
2
|
-
|
181689328
|
Na dotaz | Na dotaz | ||
|
63
|
50
|
50
|
40
|
2
|
10
|
610
|
63
|
180
|
1∕4
|
255
|
141
|
37
|
26
|
225
|
192
|
220
|
39
|
3.0
|
23
|
50
|
3
|
-
|
181689329
|
Na dotaz | Na dotaz | ||
|
63
|
63
|
50
|
50
|
2
|
10
|
747
|
63
|
180
|
1∕4
|
255
|
141
|
37
|
26
|
225
|
192
|
220
|
39
|
3.0
|
23
|
50
|
3
|
-
|
181689330
|
Na dotaz | Na dotaz | ||
|
90
|
20
|
80
|
15
|
3
|
10
|
82
|
32
|
120
|
1∕8
|
200
|
126
|
26
|
26
|
205
|
159
|
190
|
47
|
4.3
|
13
|
25
|
2
|
-
|
181689341
|
Na dotaz | Na dotaz | ||
|
90
|
25
|
80
|
20
|
3
|
10
|
103
|
32
|
120
|
1∕8
|
200
|
126
|
26
|
26
|
205
|
159
|
190
|
47
|
4.3
|
13
|
25
|
2
|
-
|
181689342
|
Na dotaz | Na dotaz | ||
|
90
|
32
|
80
|
25
|
3
|
10
|
129
|
32
|
120
|
1∕8
|
200
|
126
|
26
|
26
|
205
|
159
|
190
|
47
|
4.3
|
13
|
25
|
2
|
-
|
181689343
|
Na dotaz | Na dotaz | ||
|
90
|
50
|
80
|
40
|
3
|
10
|
623
|
63
|
180
|
1∕4
|
269
|
155
|
37
|
26
|
254
|
207
|
250
|
51
|
4.3
|
23
|
50
|
3
|
-
|
181689345
|
Na dotaz | Na dotaz | ||
|
90
|
63
|
80
|
50
|
3
|
10
|
696
|
63
|
180
|
1∕4
|
269
|
155
|
37
|
26
|
254
|
207
|
250
|
51
|
4.3
|
23
|
50
|
3
|
-
|
181689346
|
Na dotaz | Na dotaz | ||
|
110
|
20
|
100
|
15
|
4
|
10
|
78
|
32
|
120
|
1∕8
|
209
|
135
|
26
|
26
|
227
|
171
|
190
|
56
|
5.3
|
13
|
25
|
2
|
-
|
181689351
|
Na dotaz | Na dotaz | ||
|
110
|
25
|
100
|
20
|
4
|
10
|
103
|
32
|
120
|
1∕8
|
209
|
135
|
26
|
26
|
227
|
171
|
190
|
56
|
5.3
|
13
|
25
|
2
|
-
|
181689352
|
Na dotaz | Na dotaz | ||
|
110
|
32
|
100
|
25
|
4
|
10
|
131
|
32
|
120
|
1∕8
|
209
|
135
|
26
|
26
|
227
|
171
|
190
|
56
|
5.3
|
13
|
25
|
2
|
-
|
181689353
|
Na dotaz | Na dotaz | ||
|
110
|
50
|
100
|
40
|
4
|
10
|
604
|
63
|
180
|
1∕4
|
279
|
165
|
37
|
26
|
276
|
219
|
250
|
60
|
5.3
|
23
|
50
|
3
|
-
|
181689355
|
Na dotaz | Na dotaz | ||
|
110
|
63
|
100
|
50
|
4
|
10
|
661
|
63
|
180
|
1∕4
|
279
|
165
|
37
|
26
|
276
|
219
|
250
|
60
|
5.3
|
23
|
50
|
3
|
-
|
181689356
|
Na dotaz | Na dotaz |
PTFE/FKM*
|
d (mm) |
d1 (mm) |
DN (mm) |
DN1 (mm) |
Rozměr (inch) |
PN (bar) |
kv-hodnota (Δp=1 bar) (l⁄min) |
Rozměr ventilu d (mm) |
D (mm) |
D1 (inch) |
H (mm) |
H3 (mm) |
H4 (mm) |
H5 (mm) |
L (mm) |
L1 (mm) |
L3 (mm) |
L4 (mm) |
e (mm) |
Lift = Hx (mm) |
DN2 (mm) |
e1 (mm) |
Váha kg |
Obj. kód |
Ceníková cena (Kč) | Skladem | Katalogový list | Přidat do košíku |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20
|
20
|
15
|
15
|
1∕2
|
10
|
57
|
20
|
96
|
1∕8
|
130
|
71
|
25
|
16
|
117
|
96
|
162
|
12
|
1.9
|
7
|
15
|
2
|
1.112
|
181689501
|
Na dotaz | Na dotaz | ||
|
25
|
20
|
20
|
15
|
3∕4
|
10
|
89
|
25
|
96
|
1∕8
|
131
|
72
|
25
|
16
|
133
|
108
|
162
|
16
|
1.9
|
10
|
20
|
2
|
-
|
181689503
|
Na dotaz | Na dotaz | ||
|
25
|
25
|
20
|
20
|
3∕4
|
10
|
118
|
25
|
96
|
1∕8
|
131
|
72
|
25
|
16
|
133
|
108
|
162
|
16
|
1.9
|
10
|
20
|
2
|
-
|
181689504
|
Na dotaz | Na dotaz | ||
|
32
|
20
|
25
|
15
|
1
|
10
|
80
|
25
|
96
|
1∕8
|
135
|
76
|
25
|
16
|
142
|
120
|
162
|
19
|
2.4
|
10
|
20
|
2
|
-
|
181689507
|
Na dotaz | Na dotaz | ||
|
32
|
25
|
25
|
20
|
1
|
10
|
105
|
25
|
96
|
1∕8
|
135
|
76
|
25
|
16
|
142
|
120
|
162
|
19
|
2.4
|
10
|
20
|
2
|
-
|
181689508
|
Na dotaz | Na dotaz | ||
|
32
|
32
|
25
|
25
|
1
|
10
|
231
|
32
|
120
|
1∕8
|
167
|
93
|
26
|
26
|
145
|
120
|
160
|
19
|
2.4
|
13
|
25
|
2
|
-
|
181689509
|
Na dotaz | Na dotaz | ||
|
40
|
20
|
32
|
15
|
1 1∕4
|
10
|
85
|
32
|
120
|
1∕8
|
175
|
101
|
26
|
26
|
149
|
128
|
180
|
23
|
2.4
|
13
|
25
|
2
|
-
|
181689512
|
Na dotaz | Na dotaz | ||
|
40
|
25
|
32
|
20
|
1 1∕4
|
10
|
119
|
32
|
120
|
1∕8
|
175
|
101
|
26
|
26
|
149
|
128
|
180
|
23
|
2.4
|
13
|
25
|
2
|
-
|
181689513
|
Na dotaz | Na dotaz | ||
|
40
|
32
|
32
|
25
|
1 1∕4
|
10
|
153
|
32
|
120
|
1∕8
|
175
|
101
|
26
|
26
|
149
|
128
|
180
|
23
|
2.4
|
13
|
25
|
2
|
-
|
181689514
|
Na dotaz | Na dotaz | ||
|
40
|
40
|
32
|
32
|
1 1∕4
|
10
|
187
|
32
|
120
|
1∕8
|
175
|
101
|
26
|
26
|
174
|
153
|
180
|
23
|
2.4
|
13
|
25
|
2
|
-
|
181689515
|
Na dotaz | Na dotaz | ||
|
50
|
20
|
40
|
15
|
1 1∕2
|
10
|
86
|
25
|
96
|
1∕8
|
148
|
90
|
25
|
16
|
160
|
134
|
180
|
27
|
3.0
|
10
|
20
|
2
|
-
|
181689518
|
Na dotaz | Na dotaz | ||
|
50
|
25
|
40
|
20
|
1 1∕2
|
10
|
160
|
32
|
120
|
1∕8
|
180
|
106
|
26
|
26
|
160
|
134
|
180
|
28
|
3.0
|
13
|
25
|
2
|
-
|
181689519
|
Na dotaz | Na dotaz | ||
|
50
|
32
|
40
|
25
|
1 1∕2
|
10
|
206
|
32
|
120
|
1∕8
|
180
|
106
|
26
|
26
|
160
|
134
|
180
|
28
|
3.0
|
13
|
25
|
2
|
-
|
181689520
|
Na dotaz | Na dotaz | ||
|
50
|
40
|
40
|
32
|
1 1∕2
|
10
|
524
|
63
|
180
|
1∕4
|
249
|
135
|
37
|
26
|
209
|
169
|
209
|
33
|
3.0
|
23
|
50
|
2
|
-
|
181689521
|
Na dotaz | Na dotaz | ||
|
50
|
50
|
40
|
40
|
1 1∕2
|
10
|
667
|
63
|
180
|
1∕4
|
249
|
135
|
37
|
26
|
209
|
169
|
209
|
33
|
3.0
|
23
|
50
|
3
|
-
|
181689522
|
Na dotaz | Na dotaz | ||
|
63
|
20
|
50
|
15
|
2
|
10
|
84
|
25
|
96
|
1∕8
|
155
|
96
|
25
|
16
|
177
|
144
|
180
|
33
|
3.0
|
10
|
20
|
2
|
-
|
181689525
|
Na dotaz | Na dotaz | ||
|
63
|
25
|
50
|
20
|
2
|
10
|
150
|
32
|
120
|
1∕8
|
187
|
113
|
26
|
26
|
177
|
144
|
180
|
35
|
3.0
|
13
|
25
|
2
|
-
|
181689526
|
Na dotaz | Na dotaz | ||
|
63
|
32
|
50
|
25
|
2
|
10
|
184
|
32
|
120
|
1∕8
|
187
|
113
|
26
|
26
|
177
|
144
|
180
|
35
|
3.0
|
13
|
25
|
2
|
-
|
181689527
|
Na dotaz | Na dotaz | ||
|
63
|
40
|
50
|
32
|
2
|
10
|
471
|
63
|
180
|
1∕4
|
255
|
141
|
37
|
26
|
225
|
192
|
220
|
39
|
3.0
|
23
|
50
|
2
|
-
|
181689528
|
Na dotaz | Na dotaz | ||
|
63
|
50
|
50
|
40
|
2
|
10
|
610
|
63
|
180
|
1∕4
|
255
|
141
|
37
|
26
|
225
|
192
|
220
|
39
|
3.0
|
23
|
50
|
3
|
-
|
181689529
|
Na dotaz | Na dotaz | ||
|
63
|
63
|
50
|
50
|
2
|
10
|
747
|
63
|
180
|
1∕4
|
255
|
141
|
37
|
26
|
225
|
192
|
220
|
39
|
3.0
|
23
|
50
|
3
|
-
|
181689530
|
Na dotaz | Na dotaz | ||
|
90
|
20
|
80
|
15
|
3
|
10
|
82
|
32
|
120
|
1∕8
|
200
|
126
|
26
|
26
|
205
|
159
|
190
|
47
|
4.3
|
13
|
25
|
2
|
-
|
181689541
|
Na dotaz | Na dotaz | ||
|
90
|
25
|
80
|
20
|
3
|
10
|
103
|
32
|
120
|
1∕8
|
200
|
126
|
26
|
26
|
205
|
159
|
190
|
47
|
4.3
|
13
|
25
|
2
|
-
|
181689542
|
Na dotaz | Na dotaz | ||
|
90
|
32
|
80
|
25
|
3
|
10
|
129
|
32
|
120
|
1∕8
|
200
|
126
|
26
|
26
|
205
|
159
|
190
|
47
|
4.3
|
13
|
25
|
2
|
-
|
181689543
|
Na dotaz | Na dotaz | ||
|
90
|
50
|
80
|
40
|
3
|
10
|
623
|
63
|
180
|
1∕4
|
269
|
155
|
37
|
26
|
254
|
207
|
250
|
51
|
4.3
|
23
|
50
|
3
|
-
|
181689545
|
Na dotaz | Na dotaz | ||
|
90
|
63
|
80
|
50
|
3
|
10
|
696
|
63
|
180
|
1∕4
|
269
|
155
|
37
|
26
|
254
|
207
|
250
|
51
|
4.3
|
23
|
50
|
3
|
-
|
181689546
|
Na dotaz | Na dotaz | ||
|
110
|
20
|
100
|
15
|
4
|
10
|
78
|
32
|
120
|
1∕8
|
209
|
135
|
26
|
26
|
227
|
171
|
190
|
56
|
5.3
|
13
|
25
|
2
|
-
|
181689551
|
Na dotaz | Na dotaz | ||
|
110
|
25
|
100
|
20
|
4
|
10
|
103
|
32
|
120
|
1∕8
|
209
|
135
|
26
|
26
|
227
|
171
|
190
|
56
|
5.3
|
13
|
25
|
2
|
-
|
181689552
|
Na dotaz | Na dotaz | ||
|
110
|
32
|
100
|
25
|
4
|
10
|
131
|
32
|
120
|
1∕8
|
209
|
135
|
26
|
26
|
227
|
171
|
190
|
56
|
5.3
|
13
|
25
|
2
|
-
|
181689553
|
Na dotaz | Na dotaz | ||
|
110
|
50
|
100
|
40
|
4
|
10
|
604
|
63
|
180
|
1∕4
|
279
|
165
|
37
|
26
|
276
|
219
|
250
|
60
|
5.3
|
23
|
50
|
3
|
-
|
181689555
|
Na dotaz | Na dotaz | ||
|
110
|
63
|
100
|
50
|
4
|
10
|
661
|
63
|
180
|
1∕4
|
279
|
165
|
37
|
26
|
276
|
219
|
250
|
60
|
5.3
|
23
|
50
|
3
|
-
|
181689556
|
Na dotaz | Na dotaz |
V čem jsme silní
Zákaznický servis
Rychlost a spolehlivost
Vysoká kvalita
Obrovský sklad
