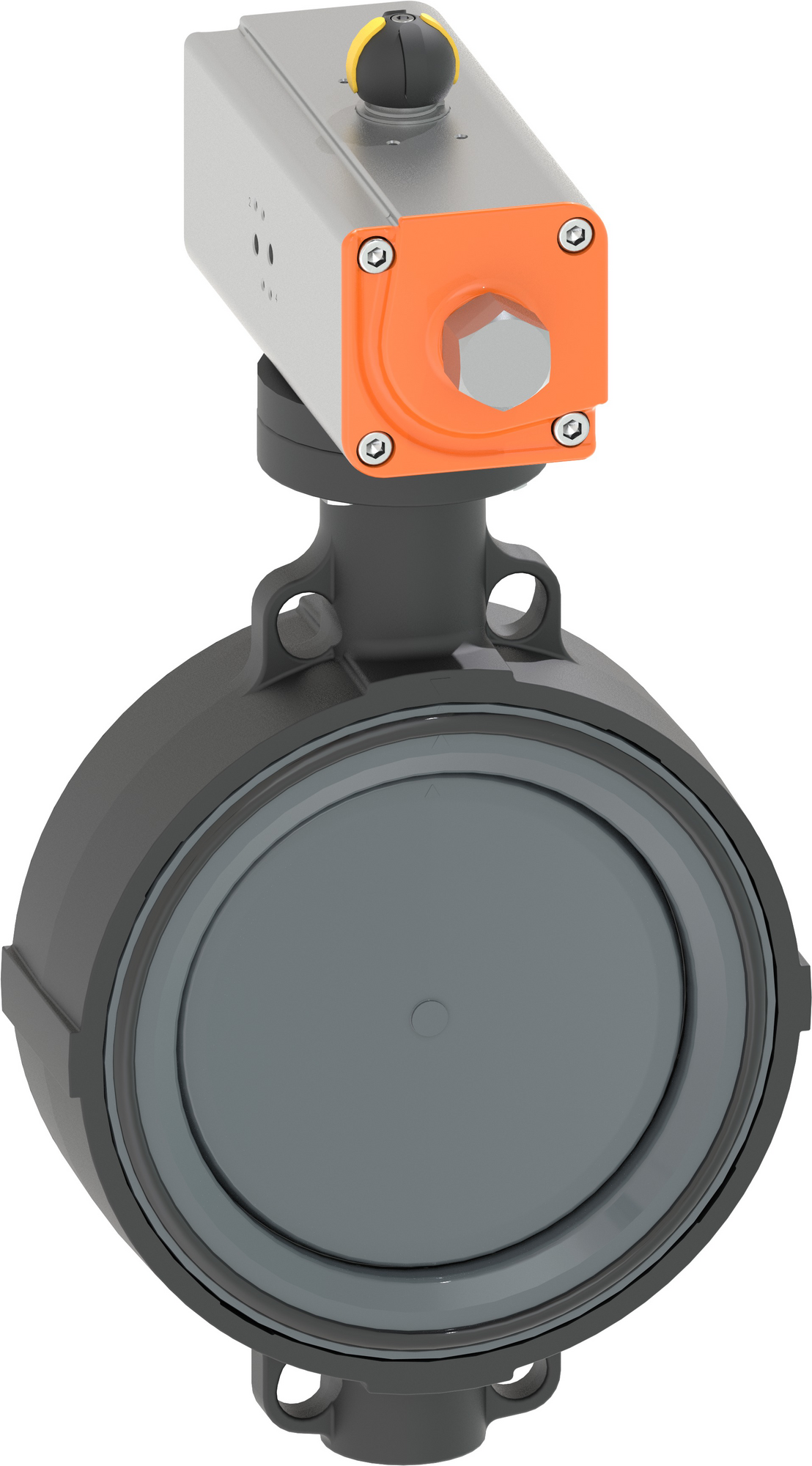

Uzavírací klapka typ 240 PVC-U
Popis
S pneupohonem - dvoučinný (DA) bez ručního převíjení příruba standardní metrická /ANSI/BS/JIS
Model:
Rozsah regulace 90 ° <)
Až do DN 300: Celková délka dle EN558 (DN 50-200: řada 25, DN250, 300 linie 16), ISO 5752
Připojovací rozměr: ISO 7005 PN 10, EN 1092 PN 10, DIN 2501 PN 10, ANSI/ASME B 16.5 Class 150, BS 1560: 1989, BS 4504, JIS B 2220
Až do DN 300: Celková délka dle EN558 (DN 50-200: řada 25, DN250, 300 linie 16), ISO 5752
Připojovací rozměr: ISO 7005 PN 10, EN 1092 PN 10, DIN 2501 PN 10, ANSI/ASME B 16.5 Class 150, BS 1560: 1989, BS 4504, JIS B 2220
Poznámka:
Pro některé kombinace materiálů (např. ventily DN300 s PE/PP trubkami) jsou potřeba speciální přírubové adaptéry. Zkontrolujte prosím „Nástroj pro dokonalé připojení příruby“ na www.gfps.com
EPDM
|
d (mm) |
Rozměr (inch) |
DN (mm) |
PN (bar) |
kv-hodnota (Δp=1 bar) (l⁄min) |

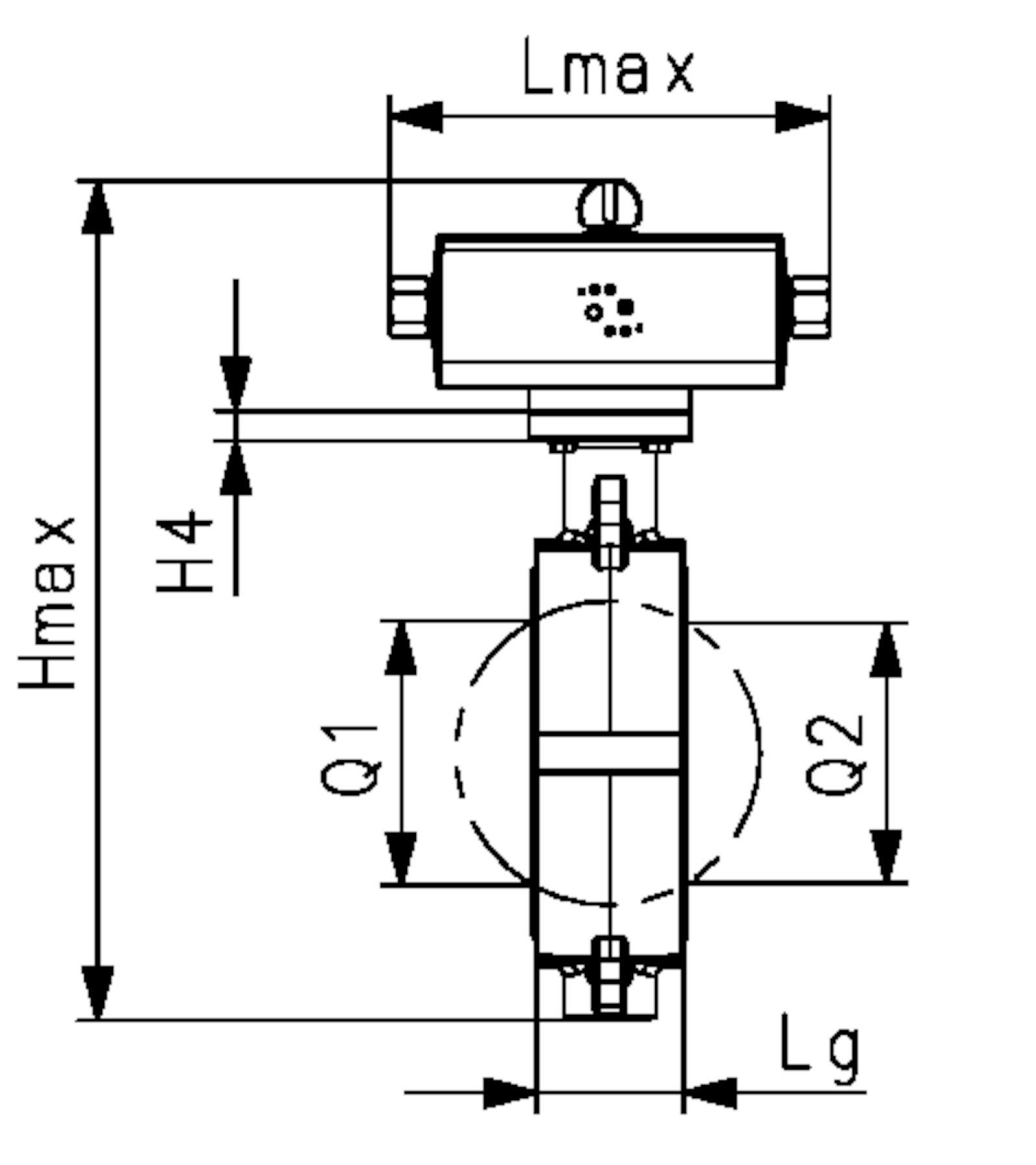

Hmax (mm) |
Lmax (mm) |

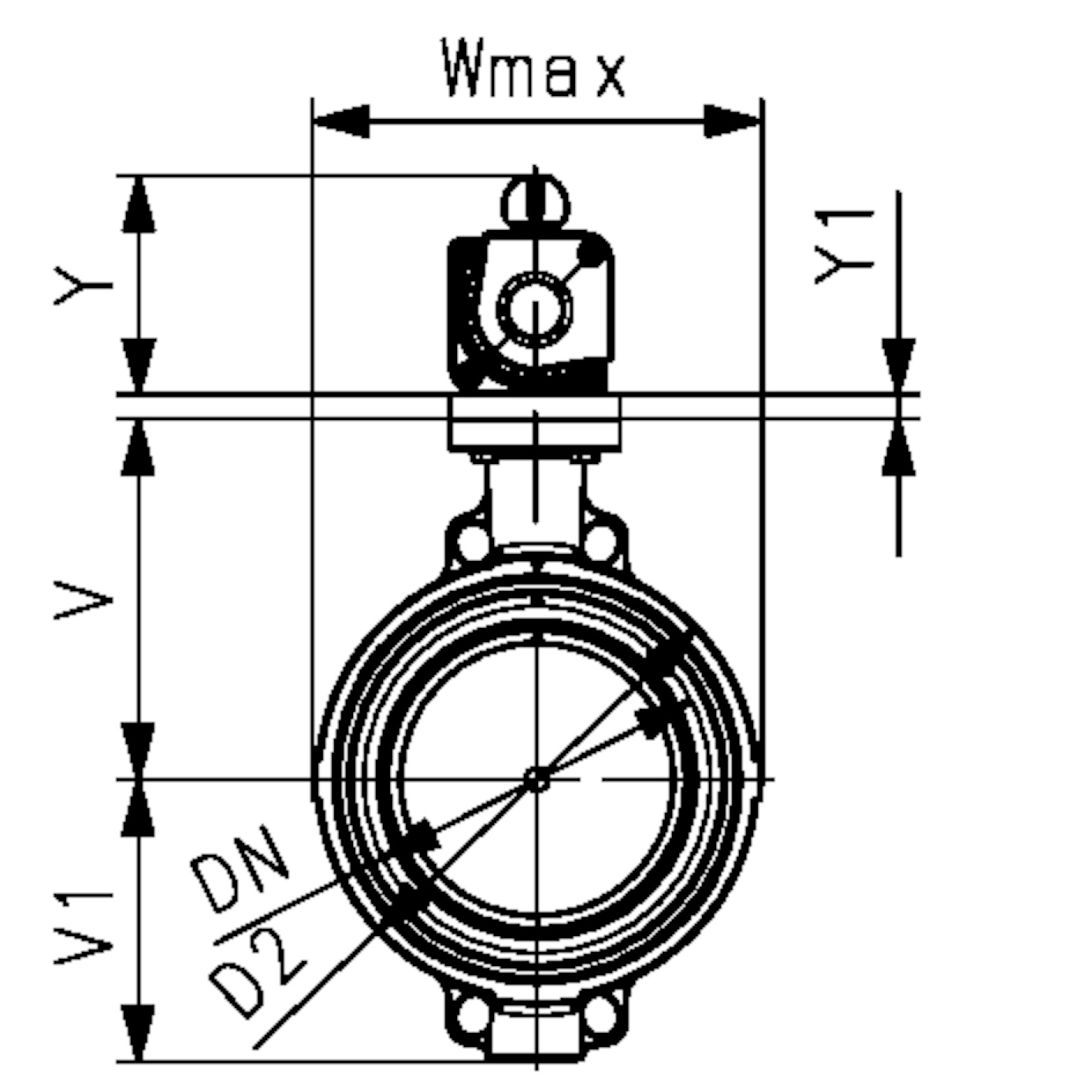

Wmax (mm) |
U (mm) |
V (mm) |
H4 (mm) |
V1 (mm) |
Lg (mm) |
D2 (mm) |
Q1 (mm) |
Q2 (mm) |
k (mm) |
Y1 (mm) |
Y (mm) |

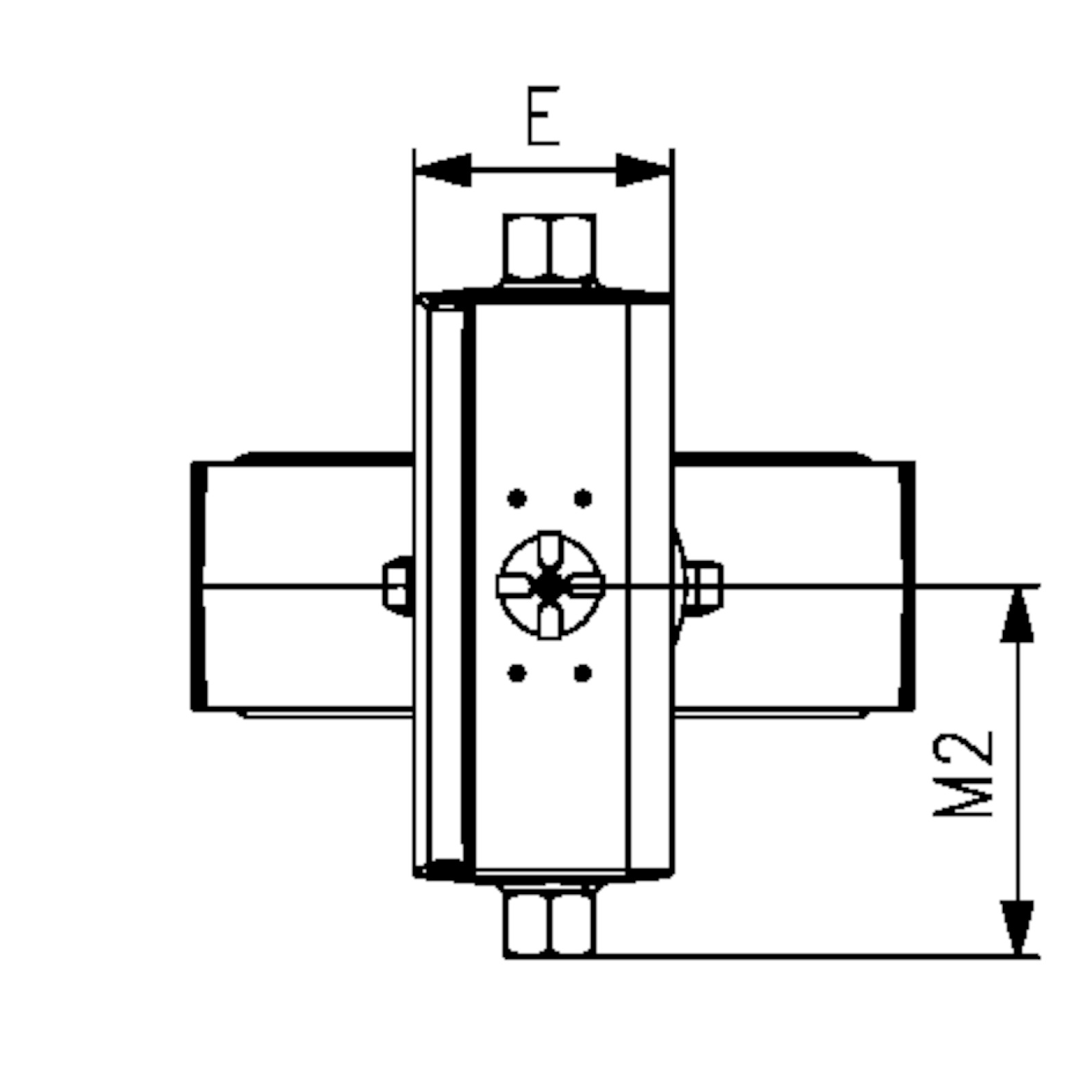

E (mm) |
M2 (mm) |
Váha kg |
Obj. kód |
Ceníková cena (Kč) | Skladem | Katalogový list | Přidat do košíku |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
63
|
2
|
50
|
10
|
740
|
319.4
|
196.2
|
118.4
|
90
|
133.3
|
23
|
78.8
|
45
|
104
|
40
|
-
|
125
|
15.0
|
92.3
|
64.5
|
98.1
|
2.936
|
199240082
|
18 998,00 | Na dotaz | ||
|
75
|
2 1∕2
|
65
|
10
|
1500
|
332.3
|
196.2
|
132.5
|
90
|
139.9
|
23
|
85.1
|
46
|
115
|
54
|
35
|
145
|
15.0
|
92.3
|
64.5
|
98.1
|
2.402
|
199240083
|
20 191,00 | Na dotaz | ||
|
90
|
3
|
80
|
10
|
2400
|
350.0
|
205.6
|
136.8
|
90
|
145.6
|
23
|
91.2
|
49
|
131
|
67
|
50
|
160
|
15.0
|
98.2
|
70.4
|
102.8
|
3.33
|
199240084
|
22 871,00 | Na dotaz | ||
|
110
|
4
|
100
|
10
|
3800
|
383.3
|
242.0
|
161.0
|
90
|
166.4
|
23
|
105.7
|
56
|
161
|
88
|
74
|
180
|
-
|
111.2
|
83.3
|
121.0
|
3.765
|
199240085
|
25 438,00 | 1 ks | ||
|
140
|
5
|
125
|
10
|
8600
|
410.0
|
242.0
|
187.0
|
90
|
180.0
|
23
|
118.8
|
64
|
187
|
113
|
97
|
210
|
-
|
111.2
|
83.3
|
121.0
|
4.341
|
199240086
|
32 399,00 | Na dotaz | ||
|
160
|
6
|
150
|
10
|
11400
|
469.4
|
290.0
|
215.0
|
90
|
189.0
|
23
|
130.9
|
72
|
215
|
139
|
123
|
240
|
-
|
149.5
|
107.5
|
145.0
|
7.042
|
199240087
|
37 226,00 | Na dotaz | ||
|
225
|
8
|
200
|
10
|
19900
|
518.3
|
290.0
|
267.0
|
90
|
210.5
|
23
|
158.3
|
73
|
267
|
178
|
169
|
295
|
-
|
149.5
|
107.5
|
145.0
|
8.907
|
199240088
|
43 540,00 | Na dotaz | ||
|
280
|
10
|
250
|
10
|
34000
|
646.9
|
339.6
|
329.0
|
125
|
262.6
|
23
|
206.1
|
113
|
329
|
210
|
207
|
350
|
18.2
|
160.0
|
118.0
|
169.8
|
18.948
|
199240089
|
98 749,00 | Na dotaz | ||
|
315
|
12
|
300
|
10
|
50000
|
691.3
|
339.6
|
380.4
|
125
|
284.3
|
23
|
228.8
|
113
|
379
|
256
|
253
|
400
|
18.2
|
160.0
|
118.0
|
169.8
|
26.8
|
199240090
|
104 692,00 | Na dotaz |
FKM
|
d (mm) |
Rozměr (inch) |
DN (mm) |
PN (bar) |
kv-hodnota (Δp=1 bar) (l⁄min) |
Hmax (mm) |
Lmax (mm) |
Wmax (mm) |
U (mm) |
V (mm) |
H4 (mm) |
V1 (mm) |
Lg (mm) |
D2 (mm) |
Q1 (mm) |
Q2 (mm) |
k (mm) |
Y1 (mm) |
Y (mm) |
E (mm) |
M2 (mm) |
Váha kg |
Obj. kód |
Ceníková cena (Kč) | Skladem | Katalogový list | Přidat do košíku |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
63
|
2
|
50
|
10
|
740
|
319.4
|
196.2
|
118.4
|
90
|
133.3
|
23
|
78.8
|
45
|
104
|
40
|
-
|
125
|
15.0
|
92.3
|
64.5
|
98.1
|
2.072
|
199240102
|
21 688,00 | Na dotaz | ||
|
75
|
2 1∕2
|
65
|
10
|
1500
|
332.3
|
196.2
|
132.5
|
90
|
139.9
|
23
|
85.1
|
46
|
115
|
54
|
35
|
145
|
15.0
|
92.3
|
64.5
|
98.1
|
2.176
|
199240103
|
23 054,00 | Na dotaz | ||
|
90
|
3
|
80
|
10
|
2400
|
350.0
|
205.6
|
136.8
|
90
|
145.6
|
23
|
91.2
|
49
|
131
|
67
|
50
|
160
|
15.0
|
98.2
|
70.4
|
102.8
|
2.824
|
199240104
|
25 075,00 | Na dotaz | ||
|
110
|
4
|
100
|
10
|
3800
|
383.3
|
242.0
|
161.0
|
90
|
166.4
|
23
|
105.7
|
56
|
161
|
88
|
74
|
180
|
-
|
111.2
|
83.3
|
121.0
|
3.563
|
199240105
|
28 417,00 | Na dotaz | ||
|
140
|
5
|
125
|
10
|
8600
|
410.0
|
242.0
|
187.0
|
90
|
180.0
|
23
|
118.8
|
64
|
187
|
113
|
97
|
210
|
-
|
111.2
|
83.3
|
121.0
|
4.384
|
199240106
|
37 159,00 | Na dotaz | ||
|
160
|
6
|
150
|
10
|
11400
|
469.4
|
290.0
|
215.0
|
90
|
189.0
|
23
|
130.9
|
72
|
215
|
139
|
123
|
240
|
-
|
149.5
|
107.5
|
145.0
|
6.694
|
199240107
|
42 629,00 | Na dotaz | ||
|
225
|
8
|
200
|
10
|
19900
|
518.3
|
290.0
|
267.0
|
90
|
210.5
|
23
|
158.3
|
73
|
267
|
178
|
169
|
295
|
-
|
149.5
|
107.5
|
145.0
|
8.134
|
199240108
|
49 838,00 | Na dotaz | ||
|
280
|
10
|
250
|
10
|
34000
|
646.9
|
339.6
|
329.0
|
125
|
262.6
|
23
|
206.1
|
113
|
329
|
210
|
207
|
350
|
18.2
|
160.0
|
118.0
|
169.8
|
19.1
|
199240109
|
102 696,00 | Na dotaz | ||
|
315
|
12
|
300
|
10
|
50000
|
691.3
|
339.6
|
380.4
|
125
|
284.3
|
23
|
228.8
|
113
|
379
|
256
|
253
|
400
|
18.2
|
160.0
|
118.0
|
169.8
|
27
|
199240110
|
120 808,00 | Na dotaz |
