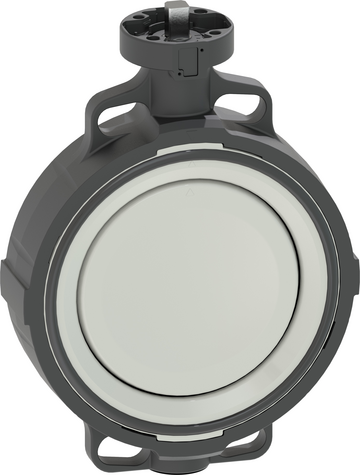

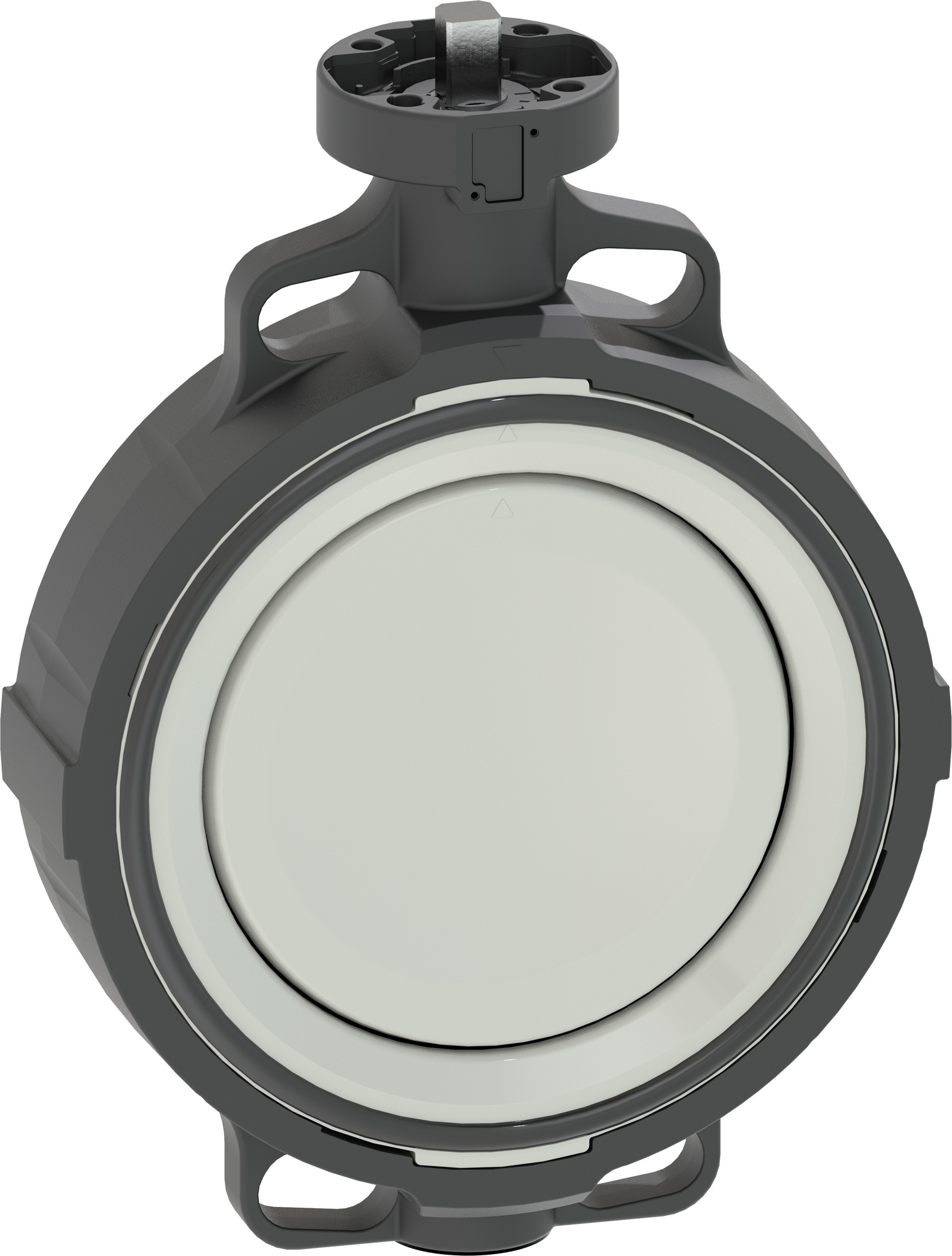

Instalační mezikus uzavírací klapky typ 567 PVC-C
Popis
Holá hřídel přírubová standard metrické /ANSI/BS/JIS
Model:
Celková délka podle EN 558, ISO 5752
Připojovací rozměr: ISO 7005 PN 10, EN 1092 PN 10, DIN 2501 PN 10, ANSI/ASME B 16.5 Class 150, BS 1560: 1989, BS 4504, JIS B 2220

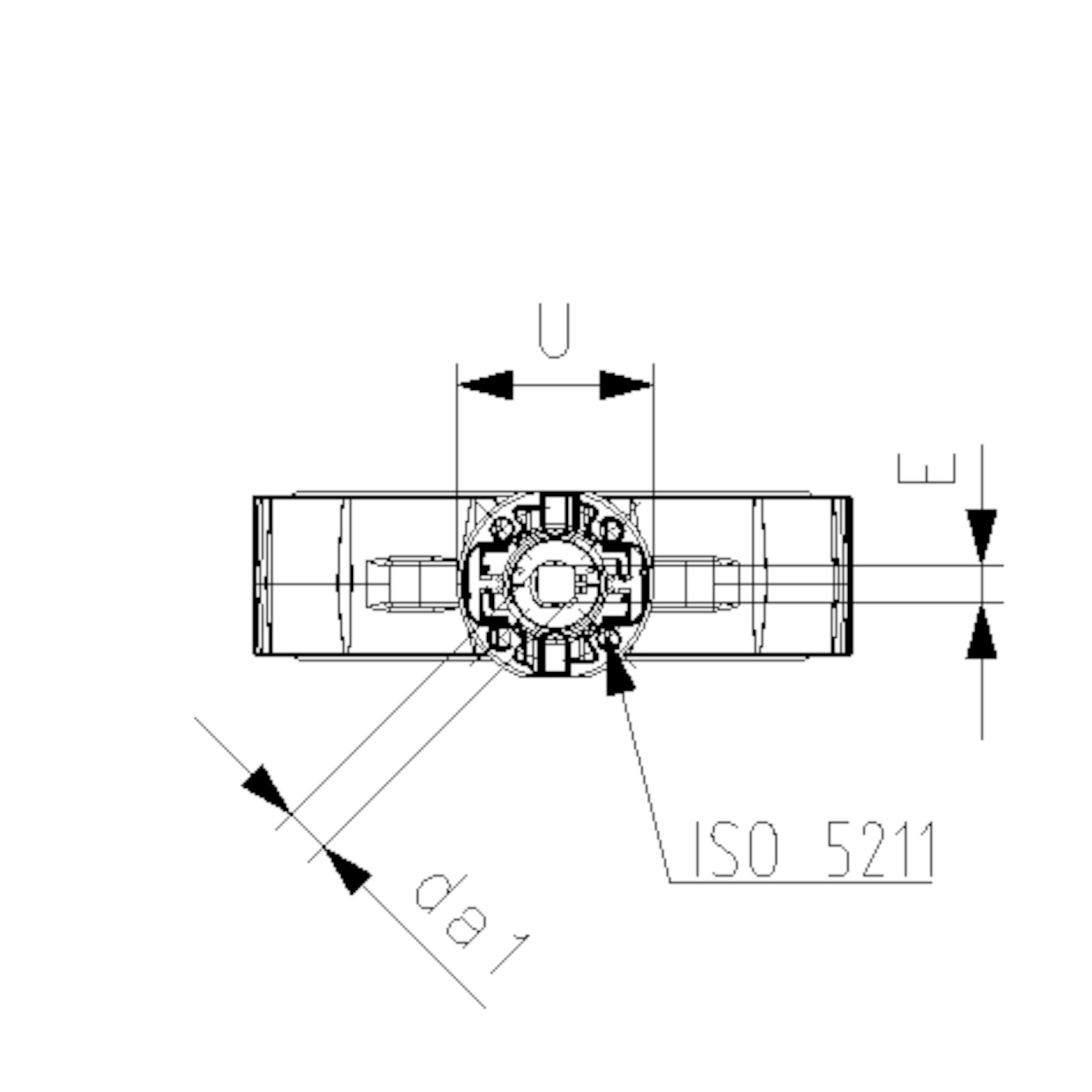

Rozhraní F07 dle DIN/ISO 5211
Připojovací rozměr: ISO 7005 PN 10, EN 1092 PN 10, DIN 2501 PN 10, ANSI/ASME B 16.5 Class 150, BS 1560: 1989, BS 4504, JIS B 2220
Rozhraní F07 dle DIN/ISO 5211
Poznámka:
Pro některé kombinace materiálů (např. ventily DN300 s PE/PP trubkami) jsou potřeba speciální přírubové adaptéry. Zkontrolujte prosím „Nástroj pro dokonalé připojení příruby“ na www.gfps.com
EPDM
|
d (mm) |
Rozměr (inch) |
DN (mm) |
PN (bar) |
kv-hodnota (Δp=1 bar) (l⁄min) |

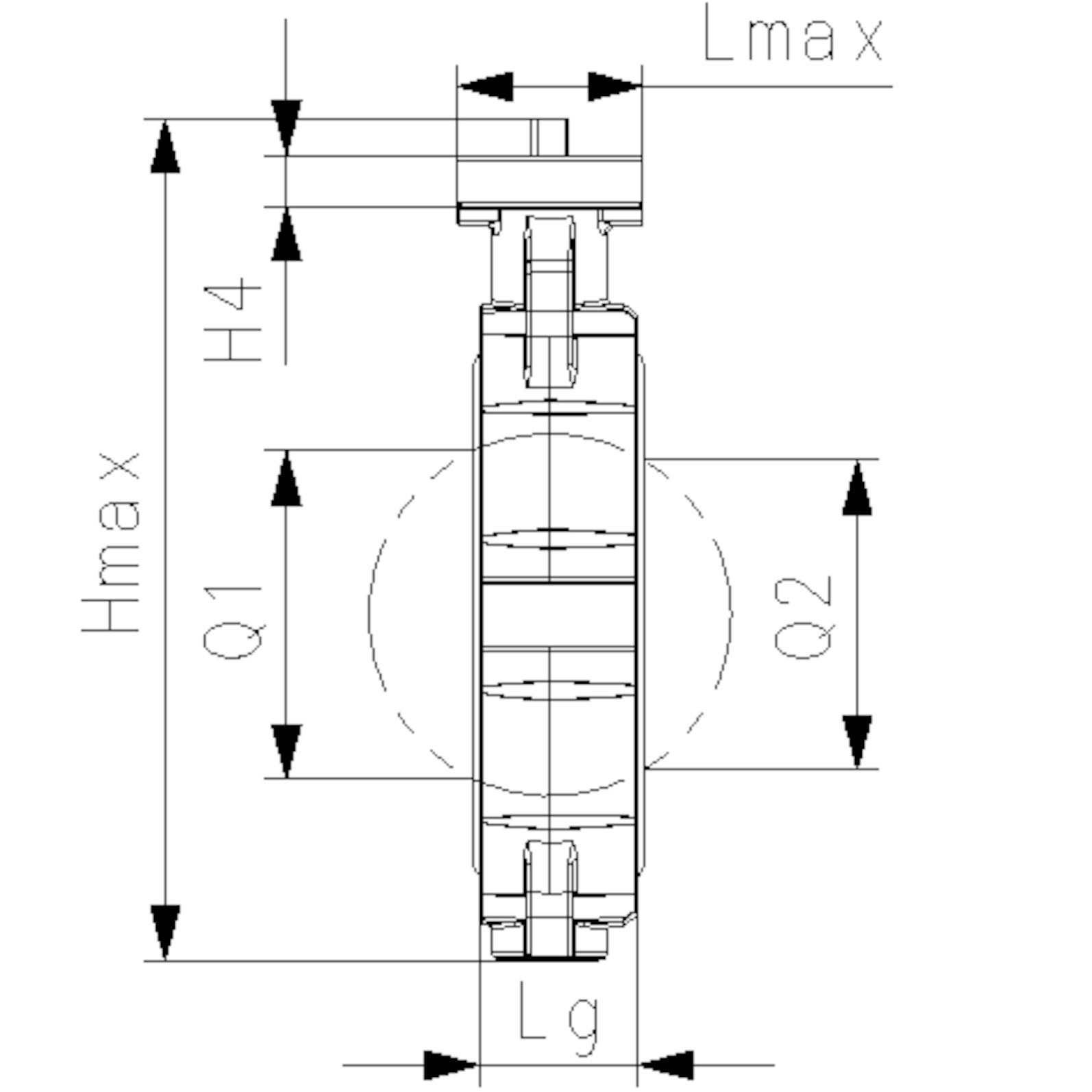

Hmax (mm) |
Lmax (mm) |

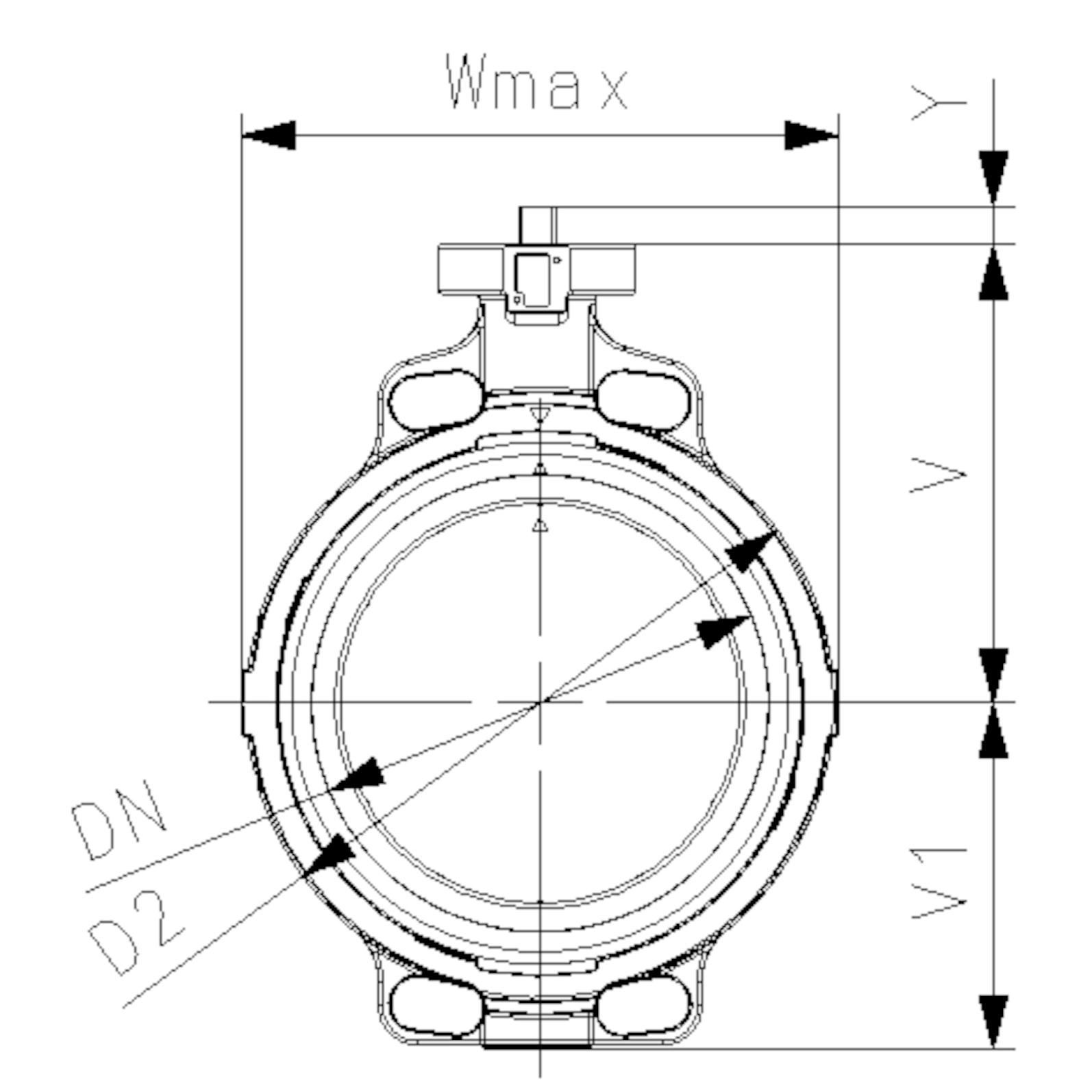

Wmax (mm) |
U (mm) |
V (mm) |
H4 (mm) |
V1 (mm) |
Lg (mm) |
D2 (mm) |
Q1 (mm) |
Q2 (mm) |
k (mm) |
Y (mm) |
E (mm) |
da1 (mm) |
Váha kg |
Obj. kód |
Ceníková cena (Kč) | Skladem | Katalogový list | Přidat do košíku |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
63
|
2
|
50
|
10
|
740
|
238.3
|
84.8
|
118.4
|
90
|
133.3
|
23
|
78.8
|
45
|
104
|
40
|
-
|
125
|
26.2
|
11
|
13.5
|
0.831
|
163567802
|
8 993,00 | Na dotaz | ||
|
75
|
2 1∕2
|
65
|
10
|
1500
|
251.2
|
84.8
|
132.5
|
90
|
139.9
|
23
|
85.1
|
46
|
115
|
54
|
35
|
145
|
26.2
|
11
|
13.5
|
0.947
|
163567803
|
10 110,00 | Na dotaz | ||
|
90
|
3
|
80
|
10
|
2400
|
263.0
|
84.8
|
136.8
|
90
|
145.6
|
23
|
91.2
|
49
|
131
|
67
|
50
|
160
|
26.2
|
11
|
13.5
|
1.079
|
163567804
|
11 800,00 | Na dotaz | ||
|
110
|
4
|
100
|
10
|
3800
|
287.5
|
84.8
|
161.0
|
90
|
166.4
|
23
|
105.7
|
56
|
161
|
88
|
74
|
180
|
15.4
|
14
|
17.3
|
1.759
|
163567805
|
14 280,00 | Na dotaz | ||
|
140
|
5
|
125
|
10
|
8600
|
314.2
|
84.8
|
187.0
|
90
|
180.0
|
23
|
118.8
|
64
|
187
|
113
|
97
|
210
|
15.4
|
14
|
17.3
|
2.361
|
163567806
|
16 217,00 | Na dotaz | ||
|
160
|
6
|
150
|
10
|
11400
|
338.3
|
84.8
|
215.0
|
90
|
189.0
|
23
|
130.9
|
72
|
215
|
139
|
123
|
240
|
18.4
|
17
|
21.1
|
3.289
|
163567807
|
20 467,00 | 1 ks | ||
|
225
|
8
|
200
|
10
|
19900
|
387.2
|
84.8
|
267.0
|
90
|
210.5
|
23
|
158.3
|
73
|
267
|
178
|
169
|
295
|
18.4
|
17
|
21.1
|
5.269
|
163567808
|
26 458,00 | Na dotaz | ||
|
280
|
10
|
250
|
10
|
34000
|
508.9
|
125.0
|
329.0
|
125
|
262.6
|
23
|
206.1
|
113
|
329
|
210
|
207
|
350
|
40.2
|
22
|
27.0
|
-
|
163567809
|
Na dotaz | Na dotaz | ||
|
315
|
12
|
300
|
10
|
50000
|
553.3
|
125.0
|
380.4
|
125
|
284.3
|
23
|
228.8
|
113
|
379
|
256
|
253
|
400
|
40.2
|
22
|
27.0
|
-
|
163567810
|
Na dotaz | Na dotaz |
FKM
|
d (mm) |
Rozměr (inch) |
DN (mm) |
PN (bar) |
kv-hodnota (Δp=1 bar) (l⁄min) |
Hmax (mm) |
Lmax (mm) |
Wmax (mm) |
U (mm) |
V (mm) |
H4 (mm) |
V1 (mm) |
Lg (mm) |
D2 (mm) |
Q1 (mm) |
Q2 (mm) |
k (mm) |
Y (mm) |
E (mm) |
da1 (mm) |
Váha kg |
Obj. kód |
Ceníková cena (Kč) | Skladem | Katalogový list | Přidat do košíku |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
63
|
2
|
50
|
10
|
740
|
238.3
|
84.8
|
118.4
|
90
|
133.3
|
23
|
78.8
|
45
|
104
|
40
|
-
|
125
|
26.2
|
11
|
13.5
|
-
|
163567822
|
Na dotaz | Na dotaz | ||
|
75
|
2 1∕2
|
65
|
10
|
1500
|
251.2
|
84.8
|
132.5
|
90
|
139.9
|
23
|
85.1
|
46
|
115
|
54
|
35
|
145
|
26.2
|
11
|
13.5
|
0.952
|
163567823
|
12 067,00 | Na dotaz | ||
|
90
|
3
|
80
|
10
|
2400
|
263.0
|
84.8
|
136.8
|
90
|
145.6
|
23
|
91.2
|
49
|
131
|
67
|
50
|
160
|
26.2
|
11
|
13.5
|
1.097
|
163567824
|
14 165,00 | Na dotaz | ||
|
110
|
4
|
100
|
10
|
3800
|
287.5
|
84.8
|
161.0
|
90
|
166.4
|
23
|
105.7
|
56
|
161
|
88
|
74
|
180
|
15.4
|
14
|
17.3
|
1.737
|
163567825
|
16 419,00 | Na dotaz | ||
|
140
|
5
|
125
|
10
|
8600
|
314.2
|
84.8
|
187.0
|
90
|
180.0
|
23
|
118.8
|
64
|
187
|
113
|
97
|
210
|
15.4
|
14
|
17.3
|
2.379
|
163567826
|
19 643,00 | Na dotaz | ||
|
160
|
6
|
150
|
10
|
11400
|
338.3
|
84.8
|
215.0
|
90
|
189.0
|
23
|
130.9
|
72
|
215
|
139
|
123
|
240
|
18.4
|
17
|
21.1
|
3.364
|
163567827
|
23 010,00 | Na dotaz | ||
|
225
|
8
|
200
|
10
|
19900
|
387.2
|
84.8
|
267.0
|
90
|
210.5
|
23
|
158.3
|
73
|
267
|
178
|
169
|
295
|
18.4
|
17
|
21.1
|
5.094
|
163567828
|
29 805,00 | Na dotaz | ||
|
280
|
10
|
250
|
10
|
34000
|
508.9
|
125.0
|
329.0
|
125
|
262.6
|
23
|
206.1
|
113
|
329
|
210
|
207
|
350
|
40.2
|
22
|
27.0
|
-
|
163567829
|
Na dotaz | Na dotaz | ||
|
315
|
12
|
300
|
10
|
50000
|
553.3
|
125.0
|
380.4
|
125
|
284.3
|
23
|
228.8
|
113
|
379
|
256
|
253
|
400
|
40.2
|
22
|
27.0
|
-
|
163567830
|
Na dotaz | Na dotaz |
PTFE
|
d (mm) |
Rozměr (inch) |
DN (mm) |
PN (bar) |
kv-hodnota (Δp=1 bar) (l⁄min) |
Hmax (mm) |
Lmax (mm) |
Wmax (mm) |
U (mm) |
V (mm) |
H4 (mm) |
V1 (mm) |
Lg (mm) |
D2 (mm) |
Q1 (mm) |
Q2 (mm) |
k (mm) |
Y (mm) |
E (mm) |
da1 (mm) |
Váha kg |
Obj. kód |
Ceníková cena (Kč) | Skladem | Katalogový list | Přidat do košíku |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
63
|
2
|
50
|
10
|
740
|
238.3
|
84.8
|
118.4
|
90
|
133.3
|
23
|
78.8
|
45
|
104
|
40
|
-
|
125
|
26.2
|
11
|
13.5
|
-
|
163567832
|
Na dotaz | Na dotaz | ||
|
75
|
2 1∕2
|
65
|
10
|
1500
|
251.2
|
84.8
|
132.5
|
90
|
139.9
|
23
|
85.1
|
46
|
115
|
54
|
35
|
145
|
26.2
|
11
|
13.5
|
-
|
163567833
|
Na dotaz | Na dotaz | ||
|
90
|
3
|
80
|
10
|
2400
|
263.0
|
84.8
|
136.8
|
90
|
145.6
|
23
|
91.2
|
49
|
131
|
67
|
50
|
160
|
26.2
|
11
|
13.5
|
-
|
163567834
|
Na dotaz | Na dotaz | ||
|
110
|
4
|
100
|
10
|
3800
|
287.5
|
84.8
|
161.0
|
90
|
166.4
|
23
|
105.7
|
56
|
161
|
88
|
74
|
180
|
15.4
|
14
|
17.3
|
-
|
163567835
|
Na dotaz | Na dotaz | ||
|
140
|
5
|
125
|
10
|
8600
|
314.2
|
84.8
|
187.0
|
90
|
180.0
|
23
|
118.8
|
64
|
187
|
113
|
97
|
210
|
15.4
|
14
|
17.3
|
-
|
163567836
|
Na dotaz | Na dotaz | ||
|
160
|
6
|
150
|
10
|
11400
|
338.3
|
84.8
|
215.0
|
90
|
189.0
|
23
|
130.9
|
72
|
215
|
139
|
123
|
240
|
18.4
|
17
|
21.1
|
-
|
163567837
|
Na dotaz | Na dotaz | ||
|
225
|
8
|
200
|
10
|
19900
|
387.2
|
84.8
|
267.0
|
90
|
210.5
|
23
|
158.3
|
73
|
267
|
178
|
169
|
295
|
18.4
|
17
|
21.1
|
-
|
163567838
|
Na dotaz | Na dotaz |
